AXI-3100

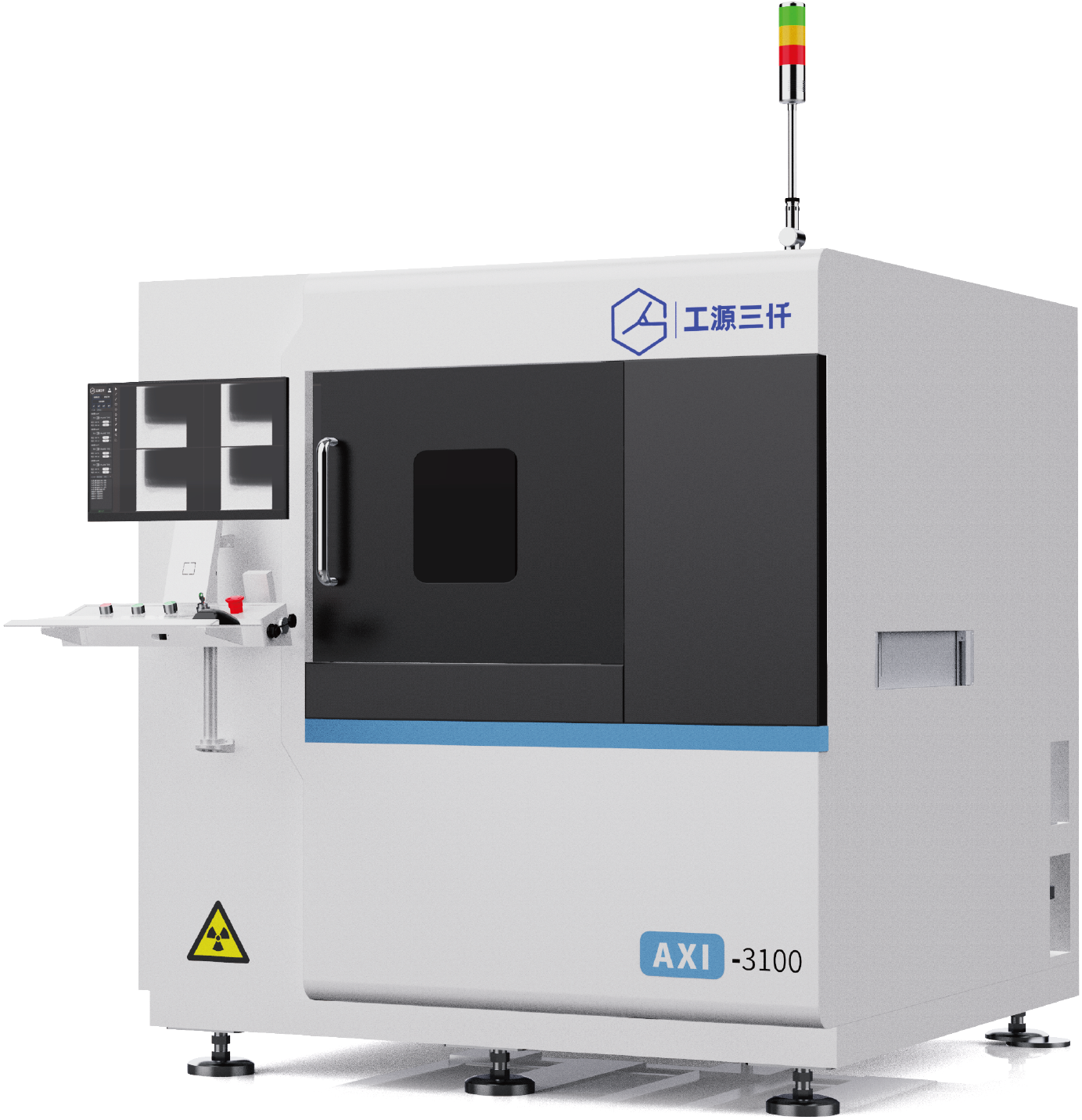

AXI-3100 Online X-Ray Inspection Equipment

Product Features：

◈ CNC Positioning Editing Function

Supports automatic positioning, auto-inspection and image storage.

◈ Rework Function

Enables effective re-inspection of NG products and statistical data analysis.

◈ AI-Powered Inspection Algorithm

Achieves a false positive rate below 1% with sufficient accumulated training data.

Product Introduction：

The AXI-3100 is an inline X-Ray inspection system independently developed by X3000 Inspection for high-speed X-ray testing of various electronic products.

Equipped with a self-developed high-performance vision imaging system, it significantly shortens single-shot acquisition time. Combined with dedicated AI algorithms for electronic product defects, the system enables automatic defect classification, segmentation and precise measurement, delivering a stable defect recognition accuracy of 99%.

Applicable fields：

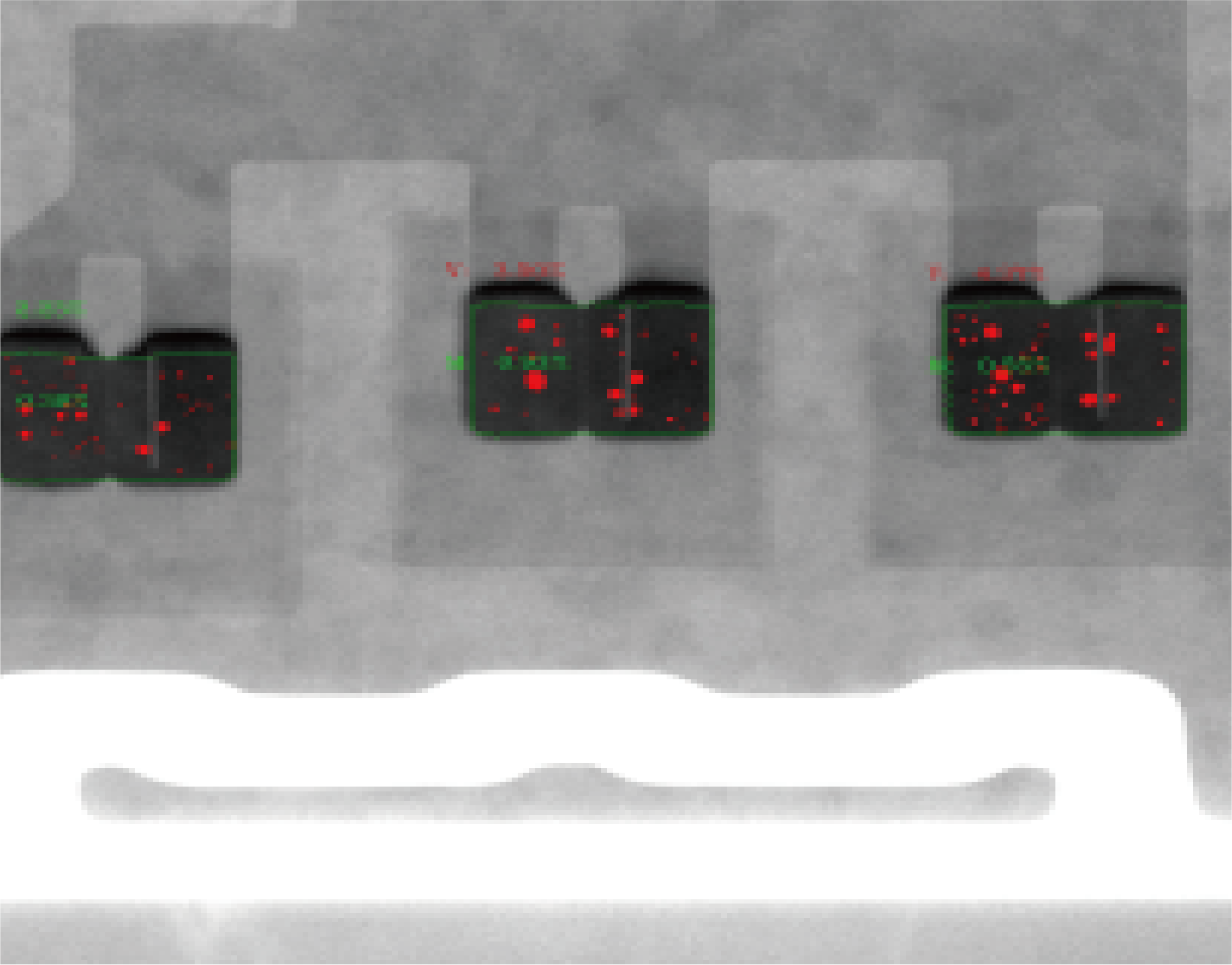

◈ SMT Inspection

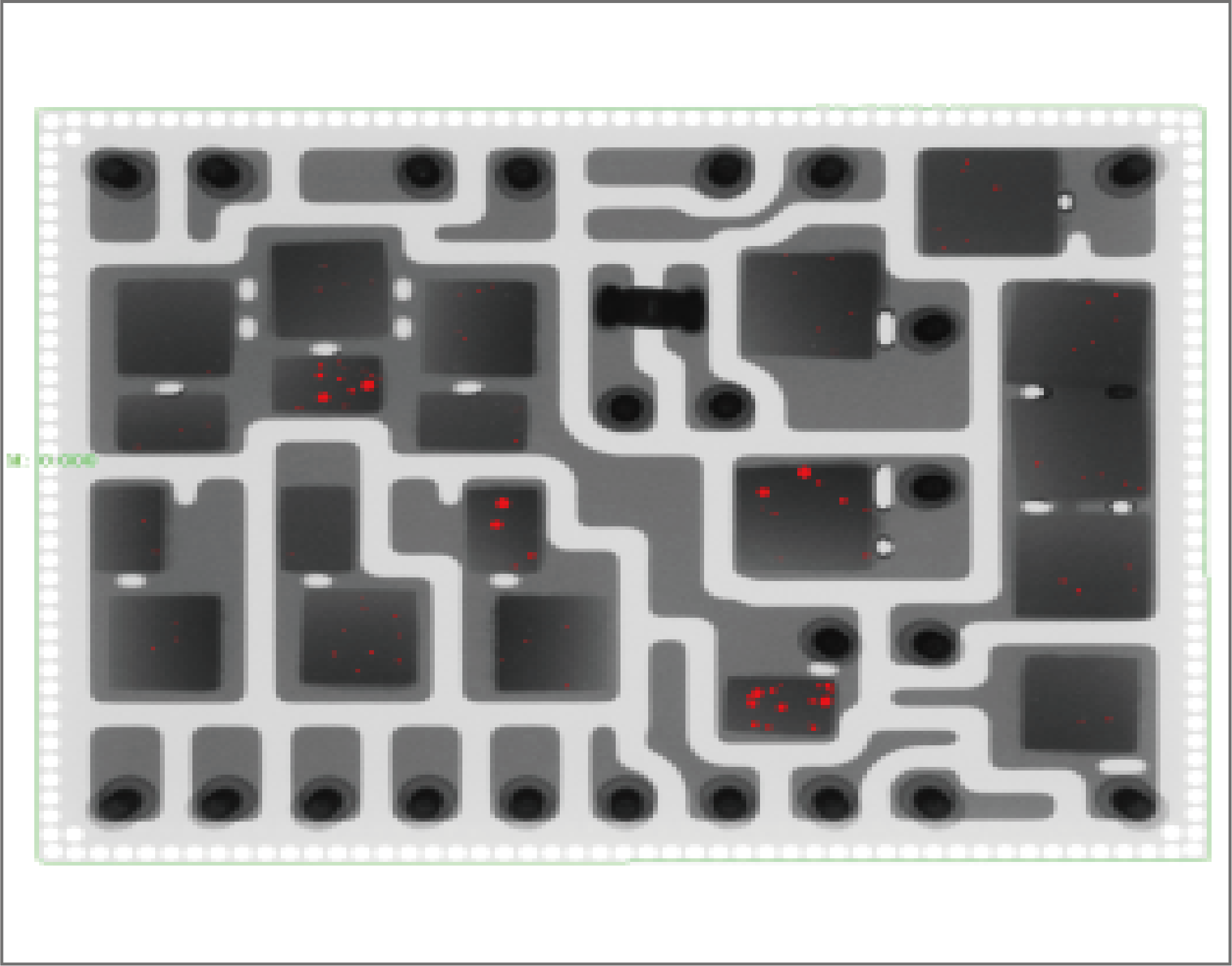

Detects BGA solder ball voids & offset, abnormal soldering of QFN pins, and solder joint defects of LED beads.

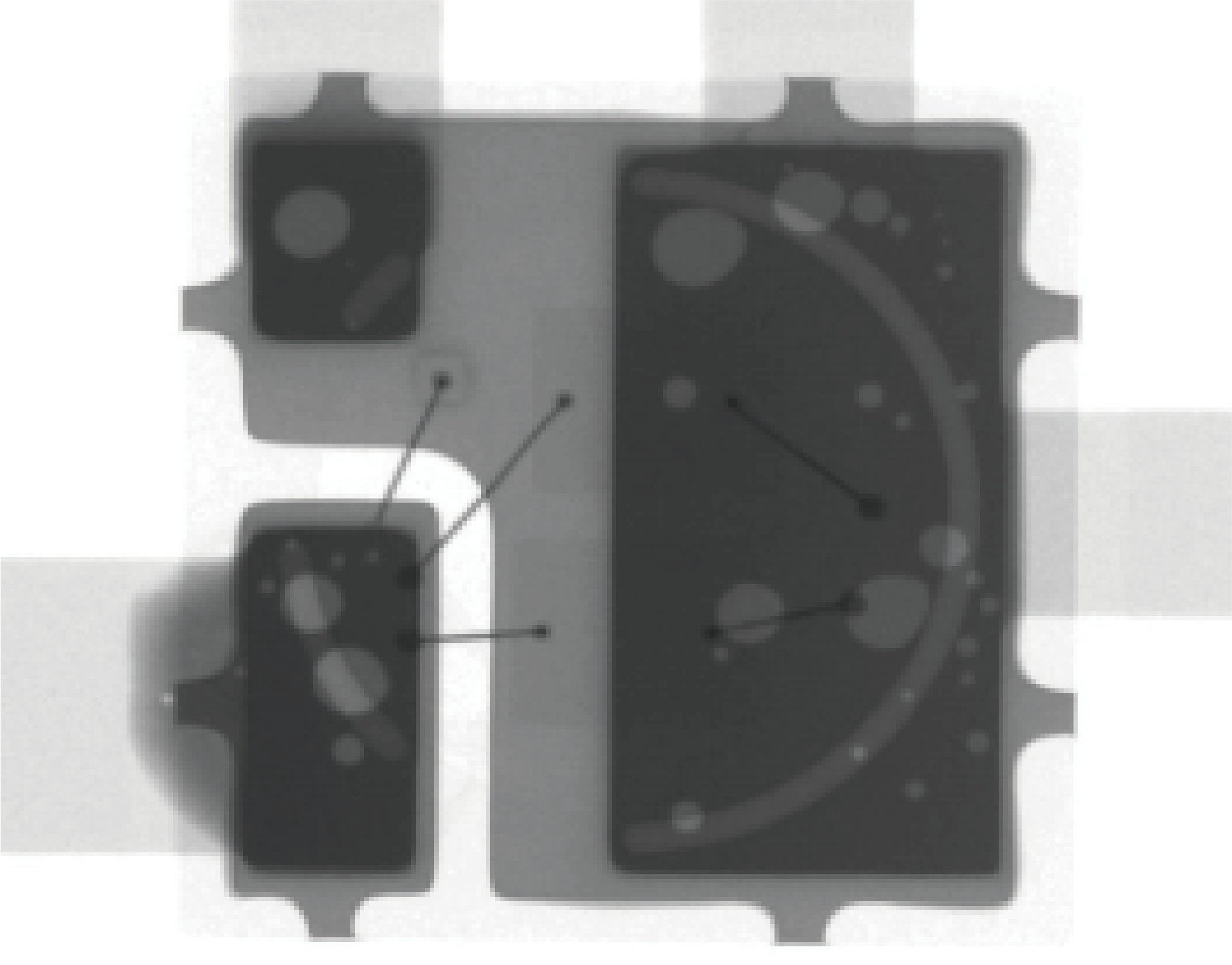

◈ Chip Packaging Inspection

Covers defects of CSP solder balls, QSP pins, PGA pins, SOP packages, as well as common bonding wire anomalies.

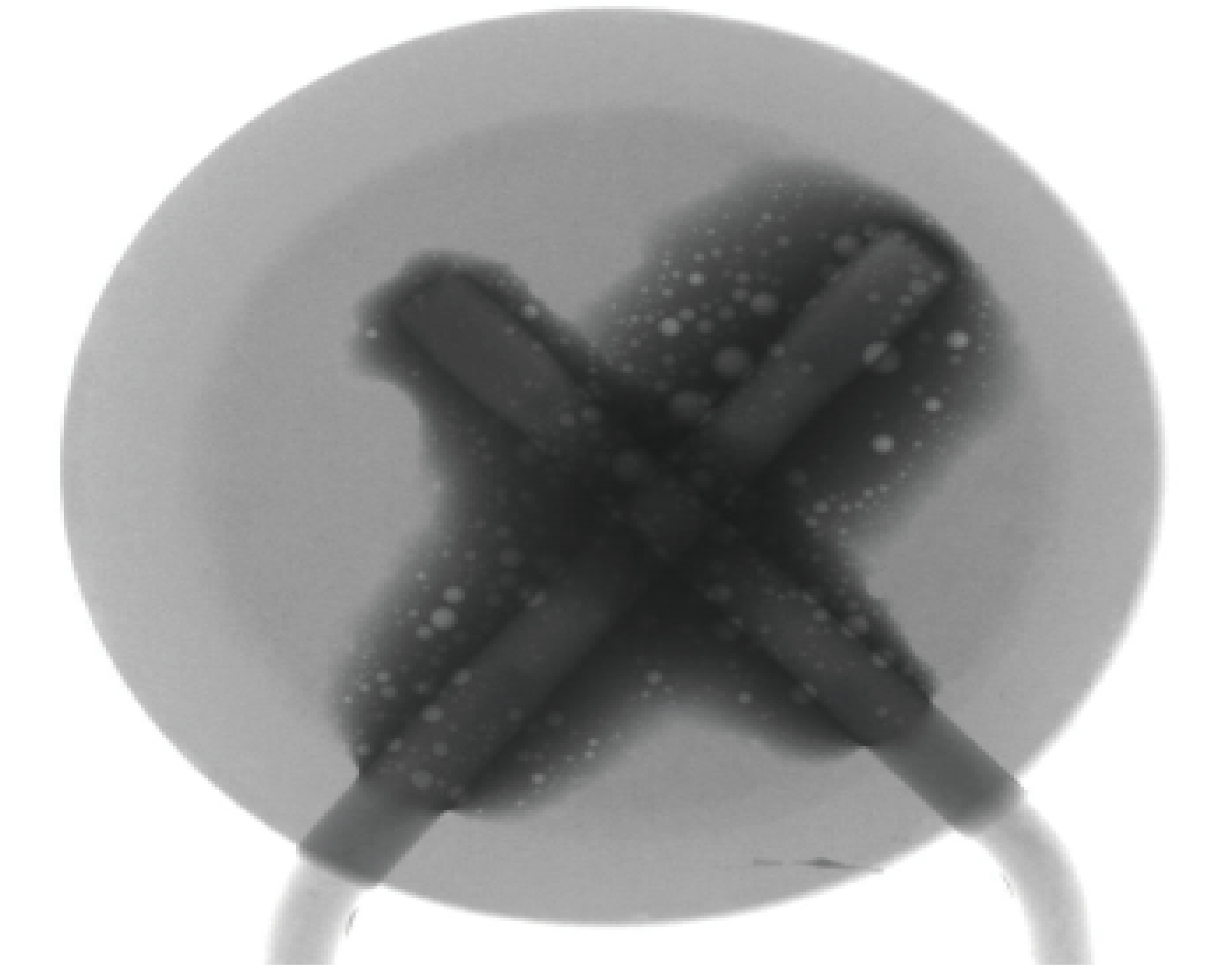

◈ DIP Inspection

Checks PTH solder climbing & voids, bonding wire faults, and solder conditions of through-hole resistor and capacitor pins.

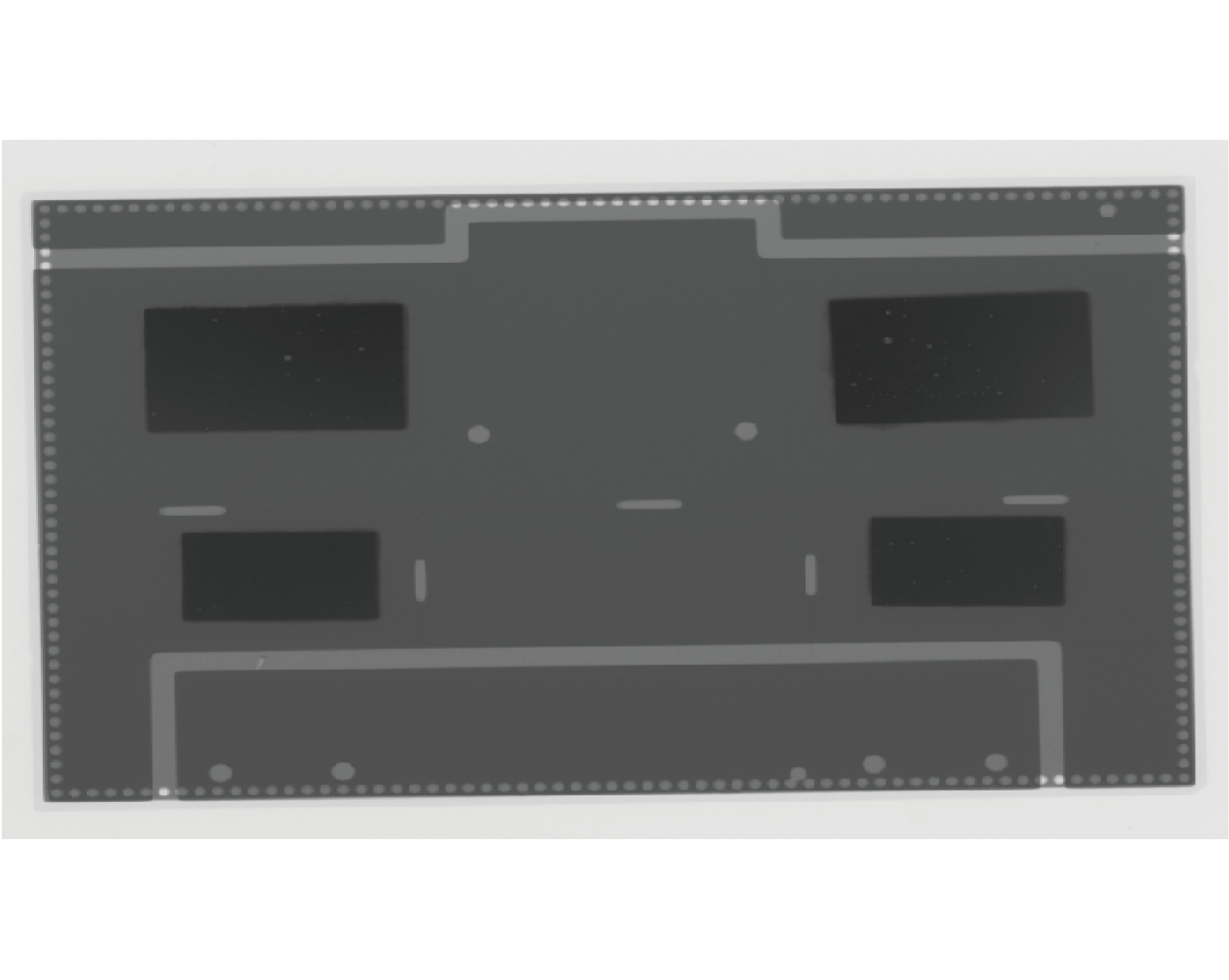

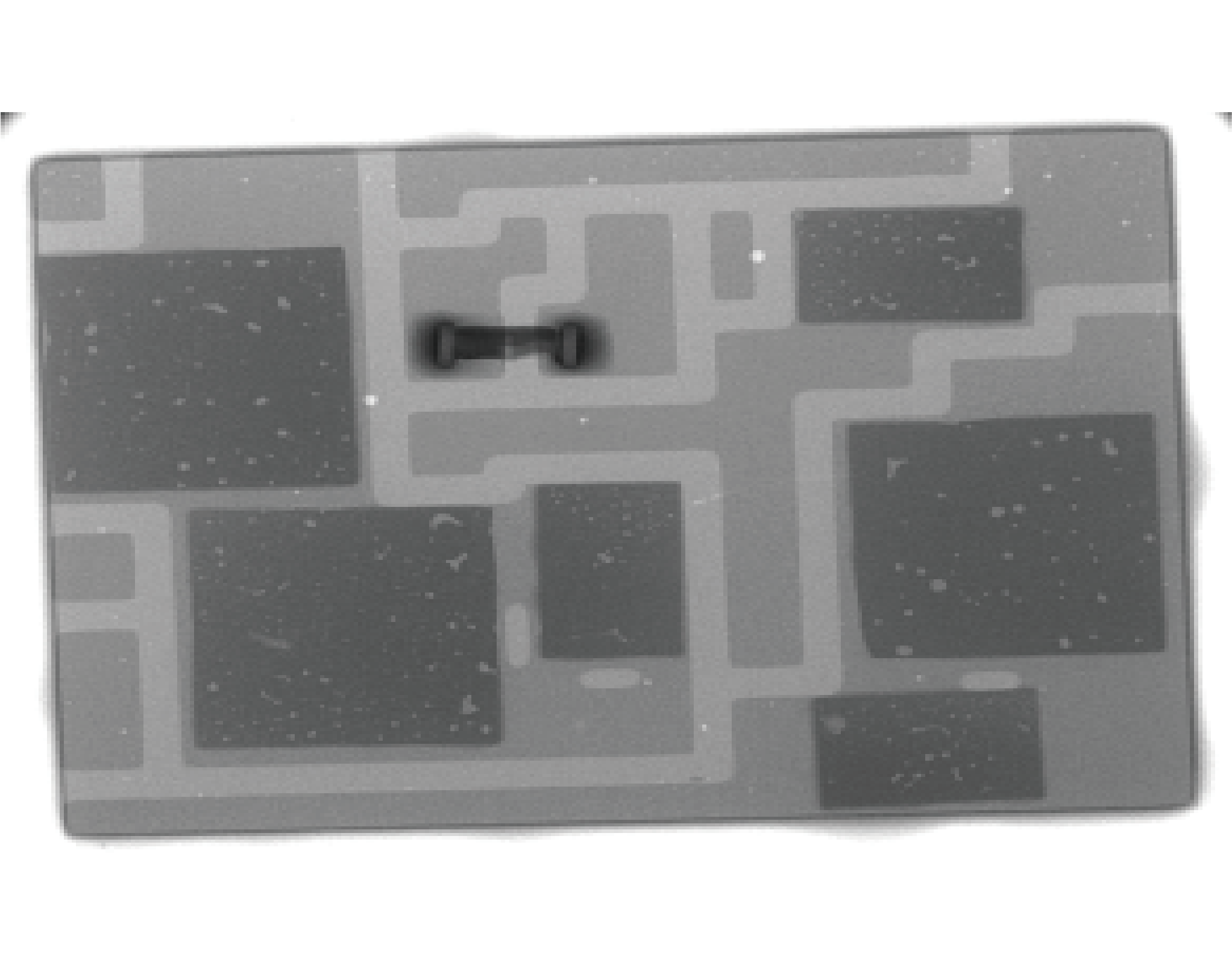

◈ Automotive Electronics Inspection

Inspects defects of automotive ECUs, sensors and IGBT modules.

Parameter Introduction：

Category	Item	Parameter
Imaging System	System Maximum Resolution	2.5μm
	Inspection Speed	≥0.4s/FOV
	Inspection Mode	2D & 2.5D
X-ray Source	Tube Type	Sealed Tube
	Tube Voltage	90kV/110kV/130kV
	Focal Spot Size	5μm
Detector	Detector Type	Flat Panel Detector
	Pixel Size	85μm
	Pixel Matrix	1536×1536

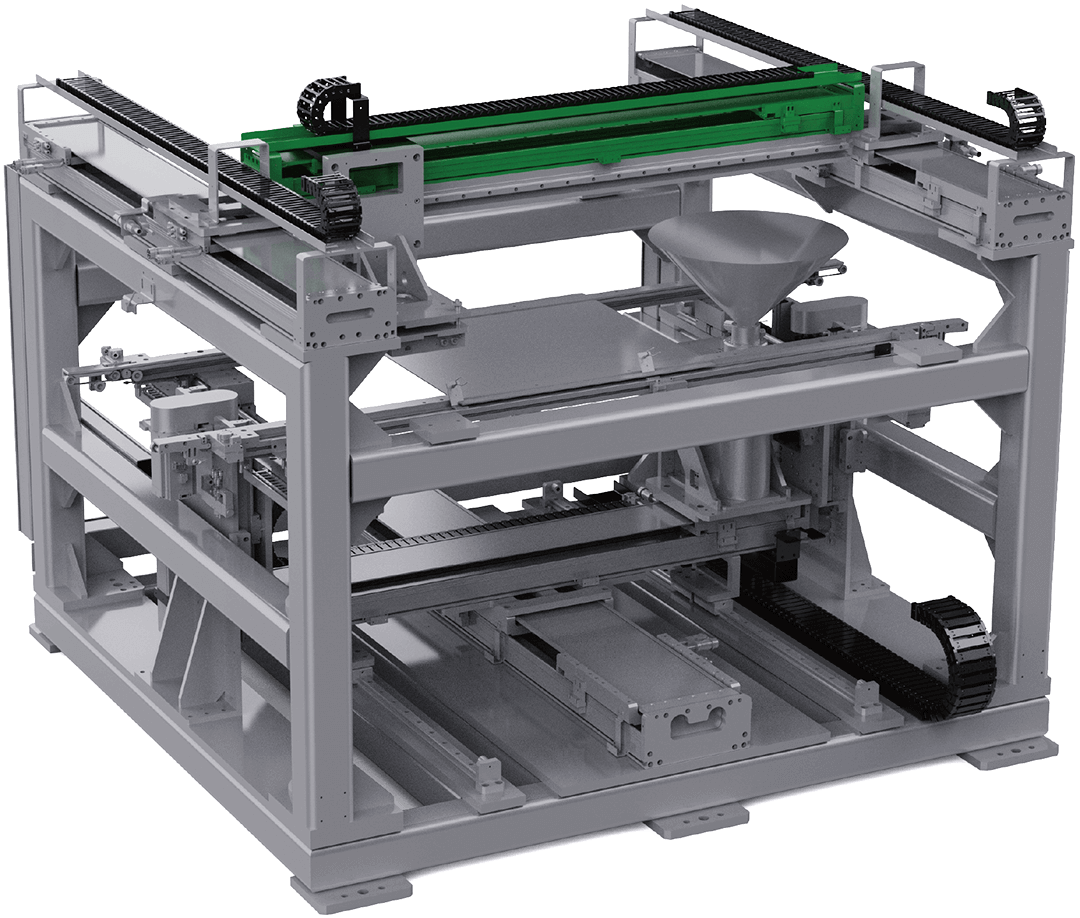

Motion Control System	Maximum Stage Area	1000×500mm (IGBT); L:1500mm W:600mm (FPCA); L:2000mm W:600mm (Vehicle-mounted CCS) (Subject to final design)
Motion Control System	Degrees of Freedom	X-axis, Y-axis, Z-axis for X-ray Tube; X-axis, Y-axis, Z-axis for Detector
Overall Specifications	Overall Dimension	L:2700mm W:1800mm H:1850mm (Excluding three-color warning light, subject to final design)
	Net Weight	Approx. 5000KG
	Rated Power	Approx. 7kW (Subject to final design)
