ACT-1600

ACT-1600 Desktop CT

Product Features：

◈ Compact Design：Boasting a space-saving compact structure, it makes full use of limited lab space and delivers outstanding cost performance.

◈ Expandable Testing Modules：Compatible with in-situ mechanical, thermal and other loading accessories to realize 4D CT imaging.

Product Introduction：

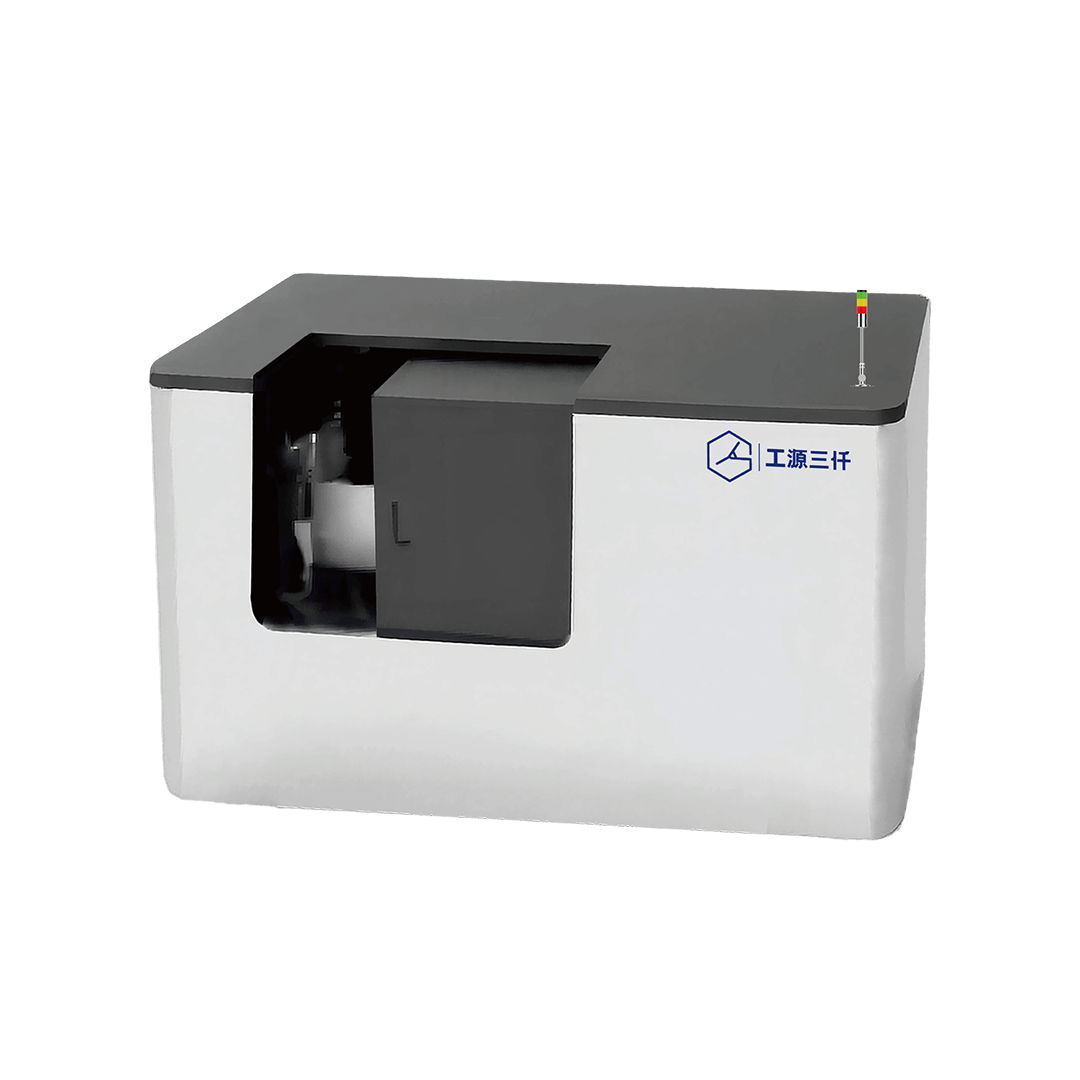

ACT-1600 is a benchtop CT system tailor-made by X3000 Inspection for laboratory research and portable field applications. Compact and lightweight, it fits most laboratory installation conditions and supports outdoor deployment, delivering micron-level CT imaging for small-size specimens.

Applicable fields：

◈ Industry

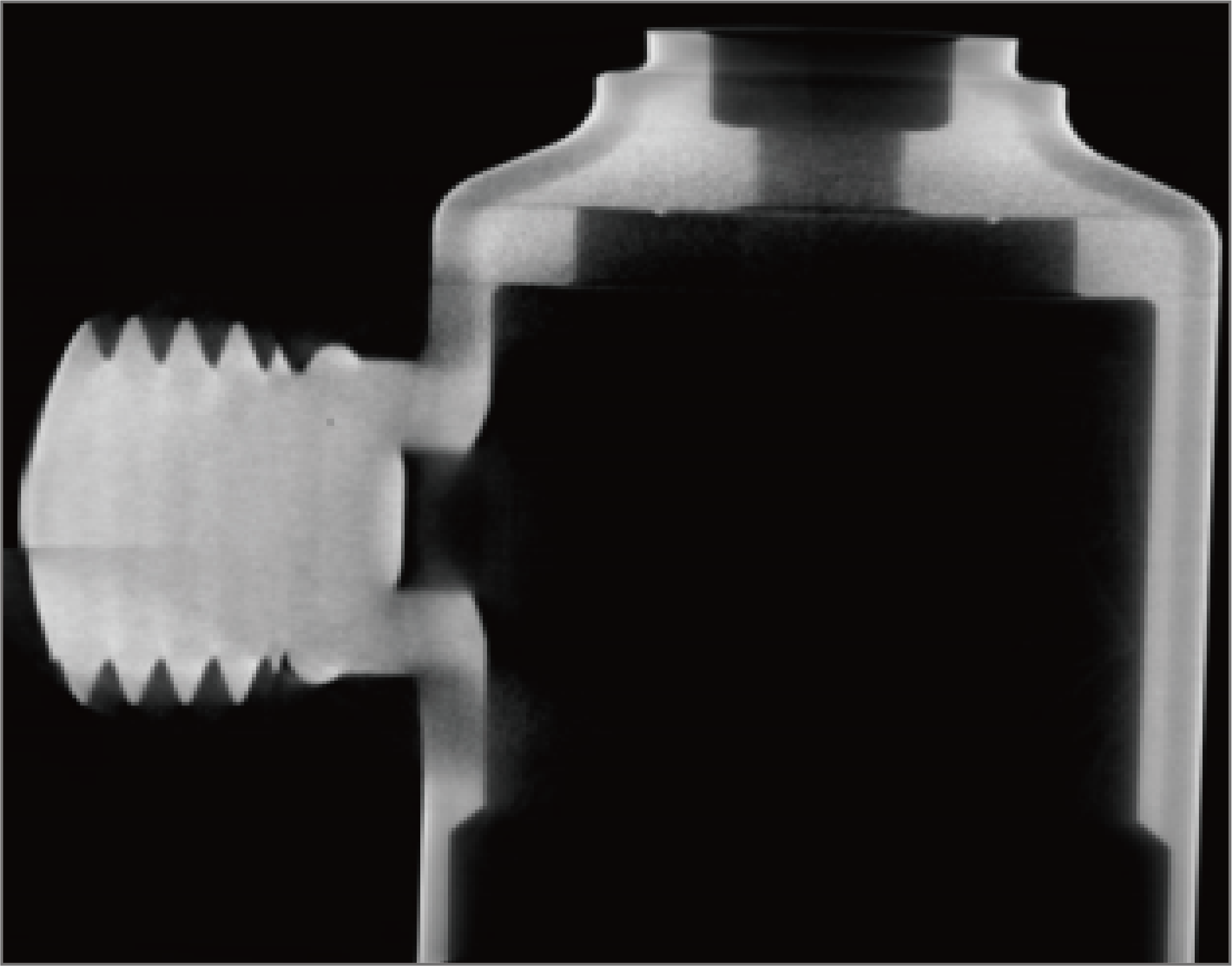

Perform internal defect detection and dimensional measurement on small-scale components made of metal, ceramic, plastic and other materials.

◈ Electronics

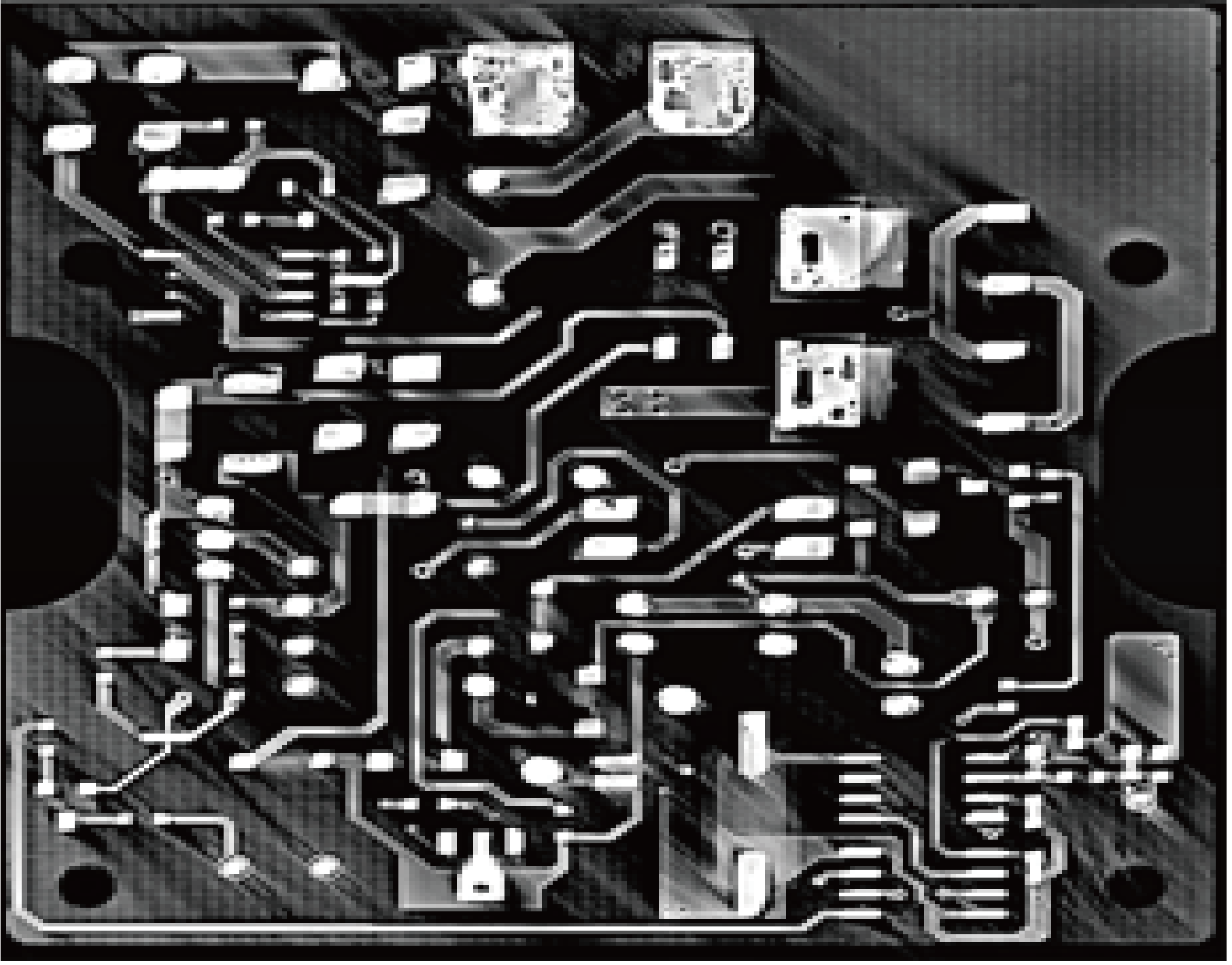

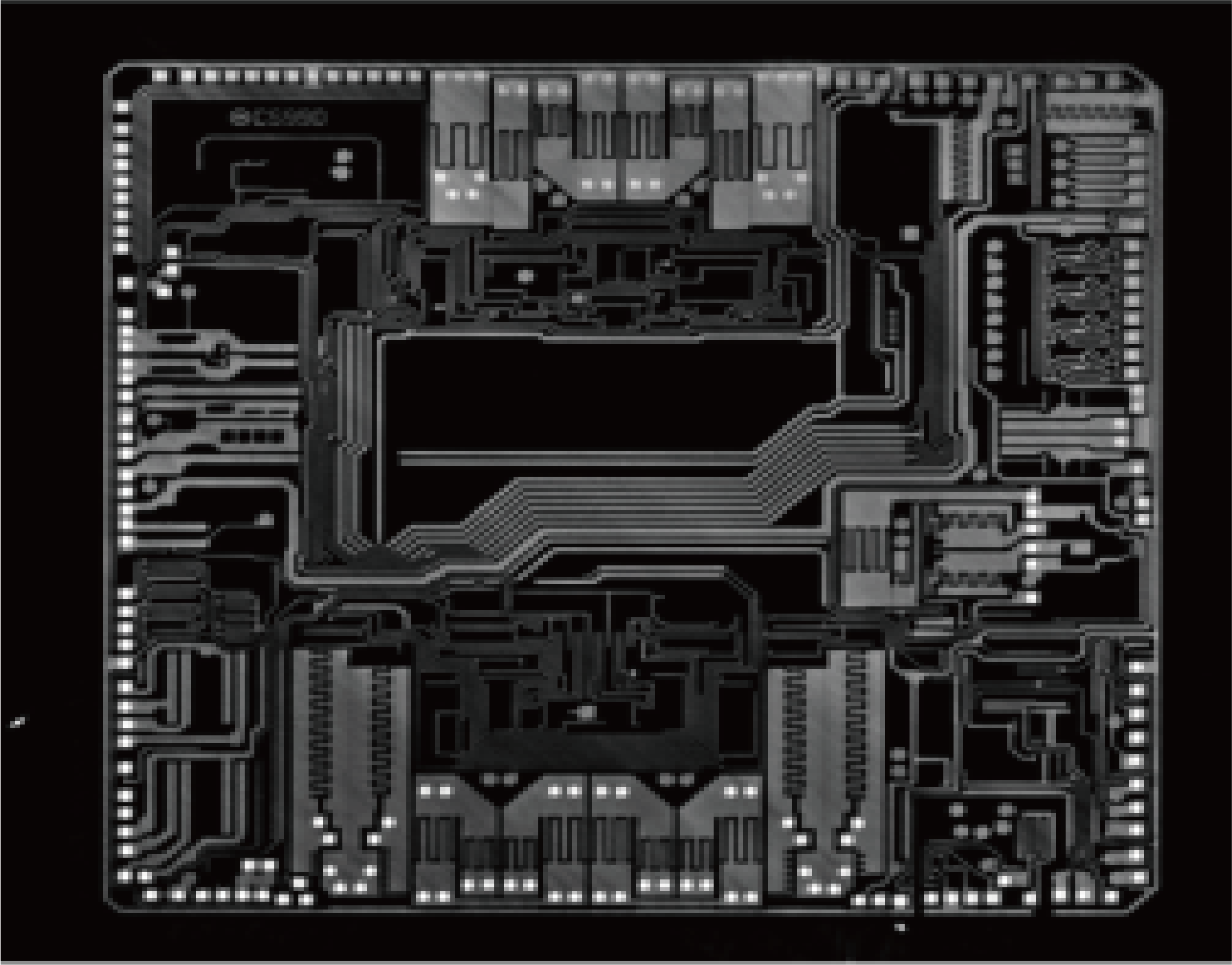

Analyze internal structures and detect hidden defects of electronic products such as circuit boards, chips and connectors.

◈ Biomedicine

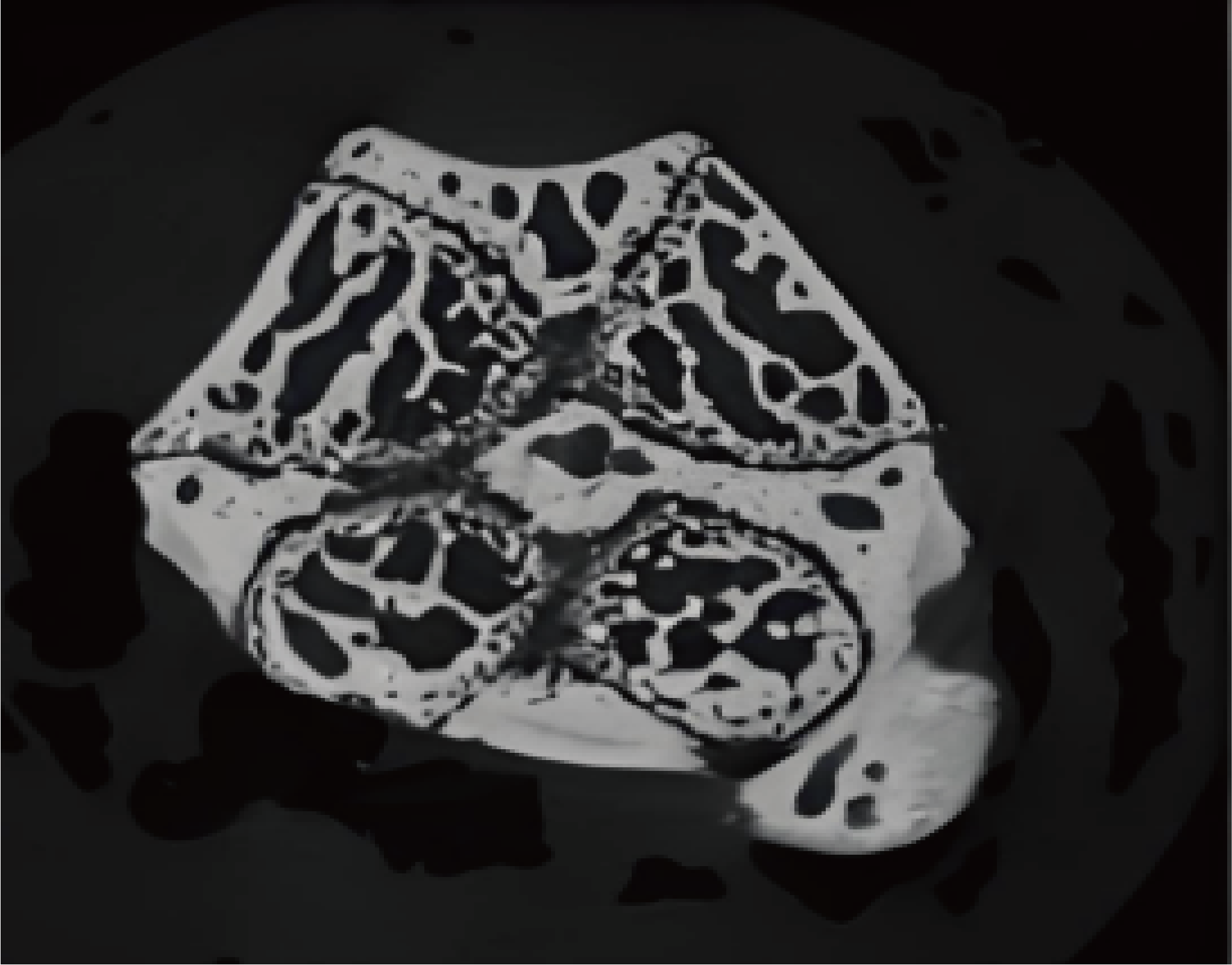

Support in-vivo imaging of small laboratory animals and structural analysis of dental models for biomedical research.

◈ Archaeology & Cultural Heritage Conservation

Conduct non-destructive testing of internal structures of cultural relics, helping trace their historical background and restore ancient manufacturing techniques.

◈ Teaching & Scientific Research

Serve as a professional experimental tool for teaching and academic research, enabling students and researchers to fully understand CT principles and practical applications.

Parameter Introduction：

Category	Item	Parameters
Imaging System	System Ultimate Spatial Resolution	2μm/5μm
	Imaging Mode	2D&3D
	Software	Self-developed CT Software by Gongyuan Sanqian (Customizable for diverse requirements); Volume Graphic (Optional)
X-ray Source	Tube Type	Sealed Tube
	Tube Voltage	90kV/110kV/130kV
	Focal Spot Size	2μm/5μm
Detector	Detector Type	Flat Panel Detector
	Pixel Size	49.8μm
	Pixel Matrix	2340×2882
Motion Control System	Maximum Sample Accommodation	Ø200×200mm (Customizable for different requirements)
Motion Control System	Maximum Sample Weight	25KG
Overall Specifications	Overall Dimension	L:1000mm W:600mm H:800mm (Excluding three-color warning light, subject to final design)
	Net Weight	Approx. 800KG
	Rated Power	Approx. 2kW (Subject to final design)
In-situ (Optional Upgrade)	Temperature Range	-80℃ to 150℃
	Load Range	Up to 1kN
	Functional Modes	Uniaxial Tension / Uniaxial Compression / Thermo-Mechanical Coupling
