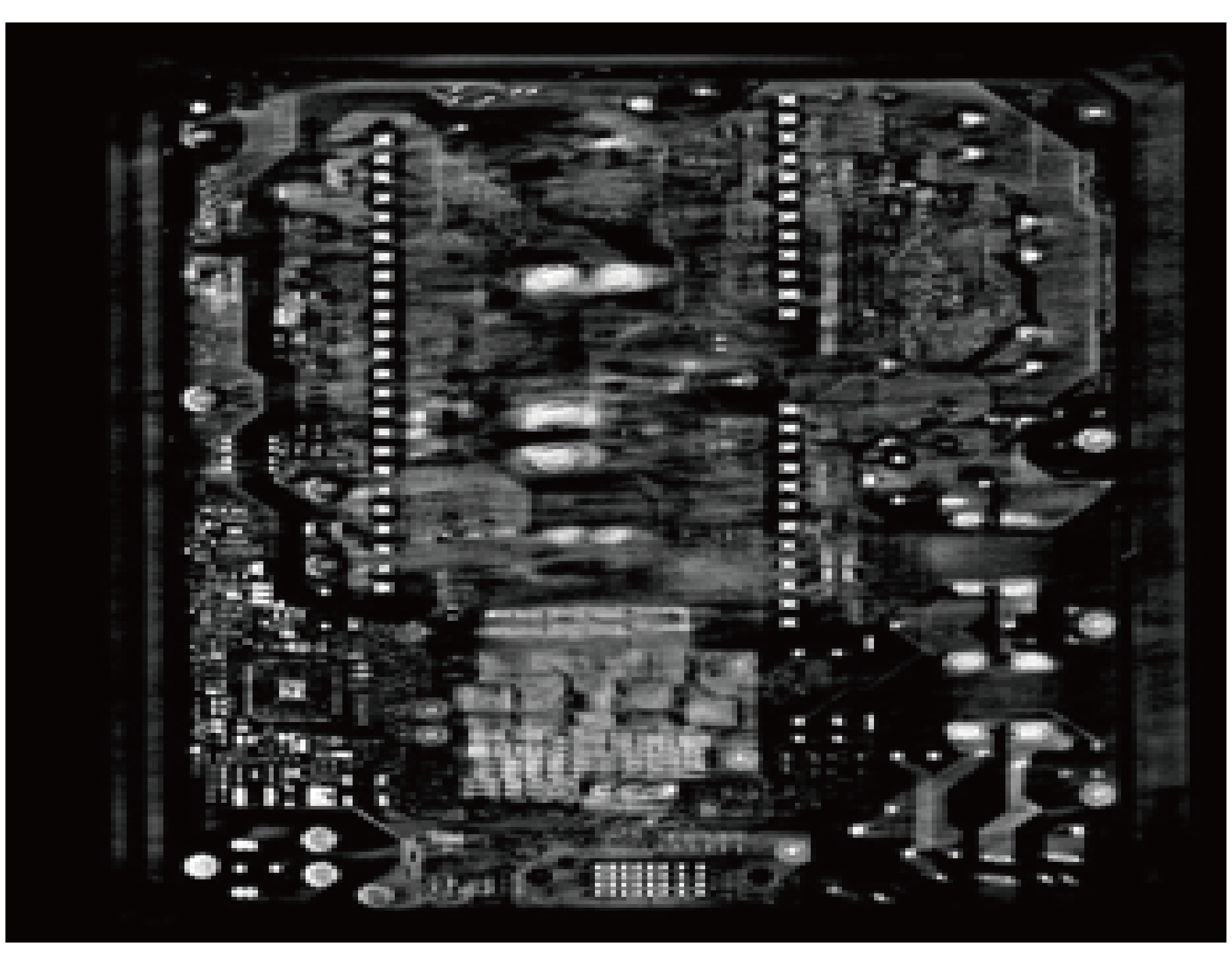

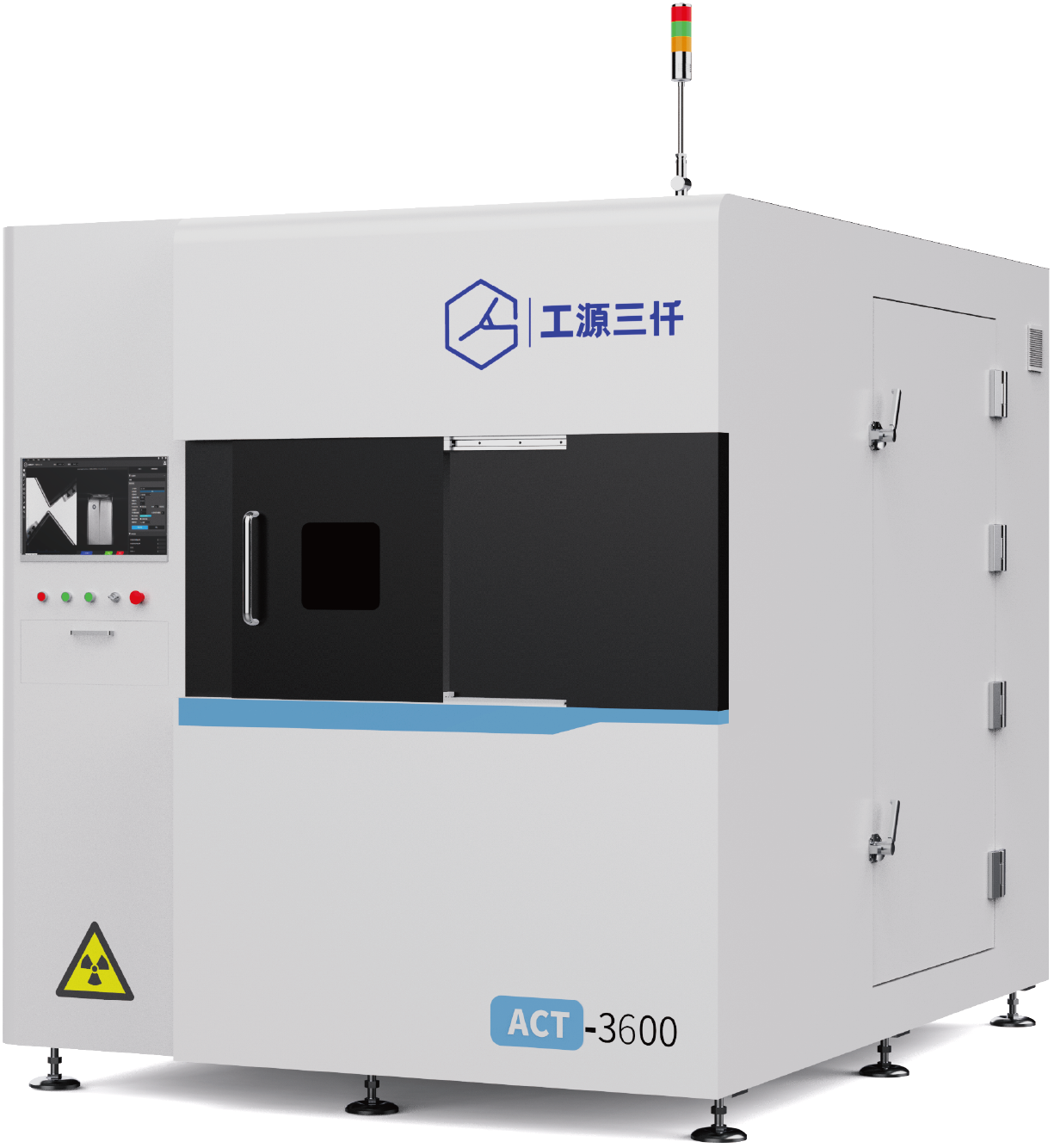

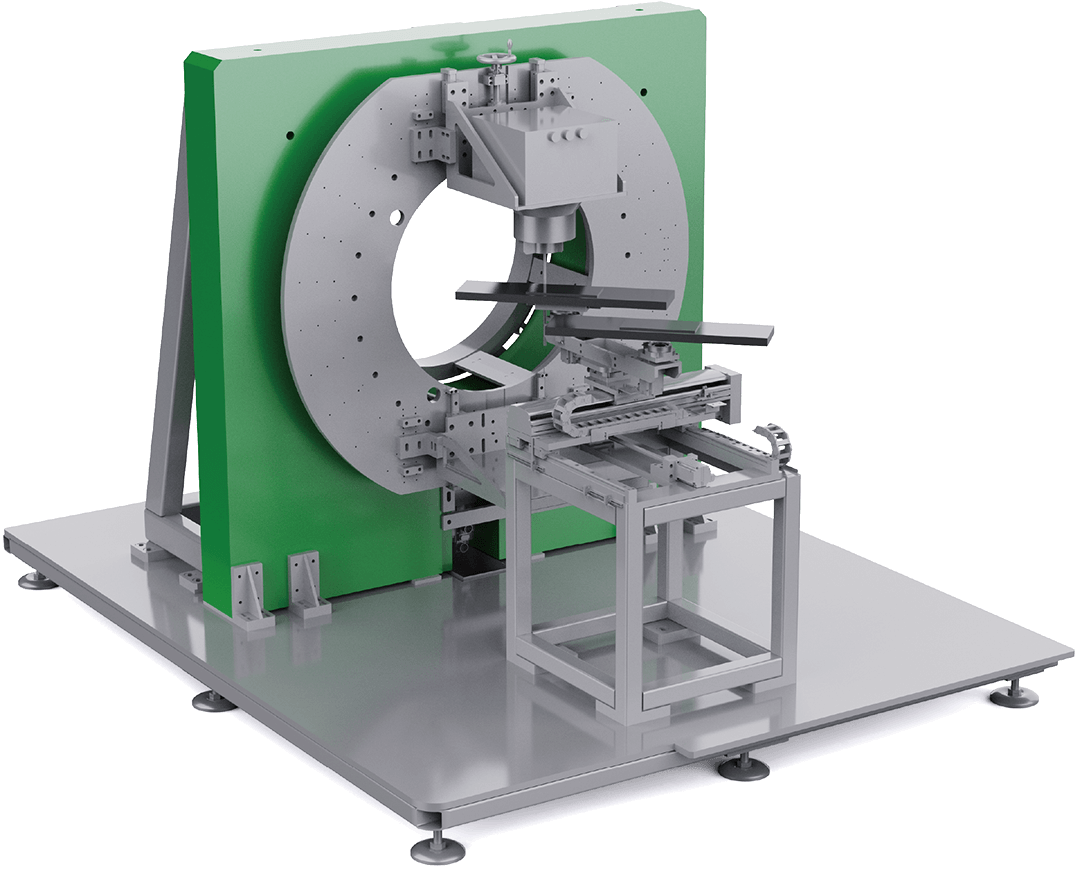

ACT-3600 is a slip-ring high-speed CT scanning inspection system independently developed by X3000 Inspection for lithium batteries and automotive electronic modules. Adopting our self-developed non-VG limited-angle CT algorithm, it drastically accelerates scanning speed: laminated batteries support X/Y-axis reconstruction with a 3-second fastest scan and 12 PPM (diagonal) throughput, while cylindrical batteries achieve 1–2 second scanning at 30–60 PPM inline efficiency, ranking at the industry’s optimal level. It also delivers 1–3 PPM solder defect inspection for power semiconductor modules and OBC units to meet full inline production inspection requirements.

Category	Item
Imaging System	System Ultimate Spatial Resolution	2.5μm/10μm

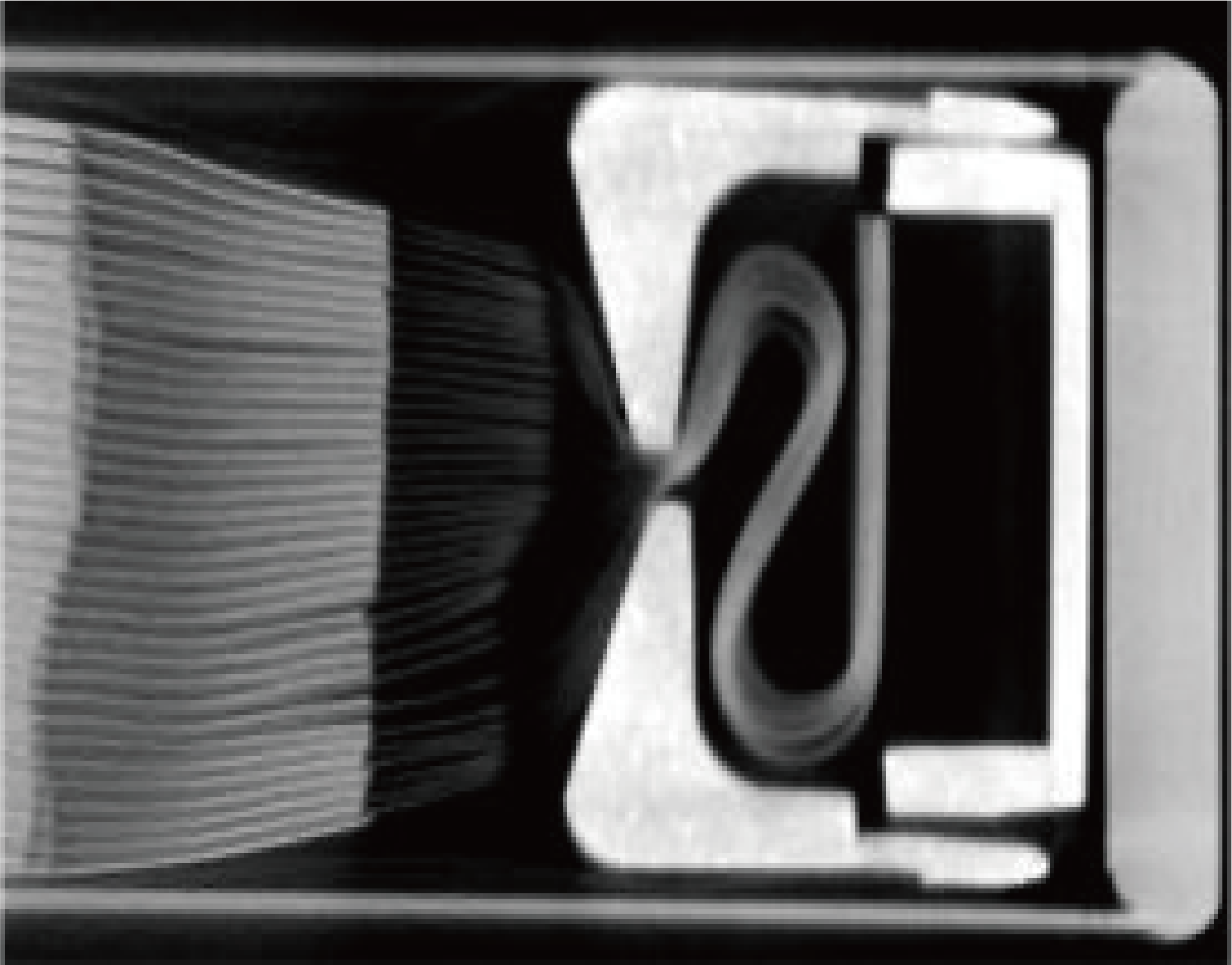

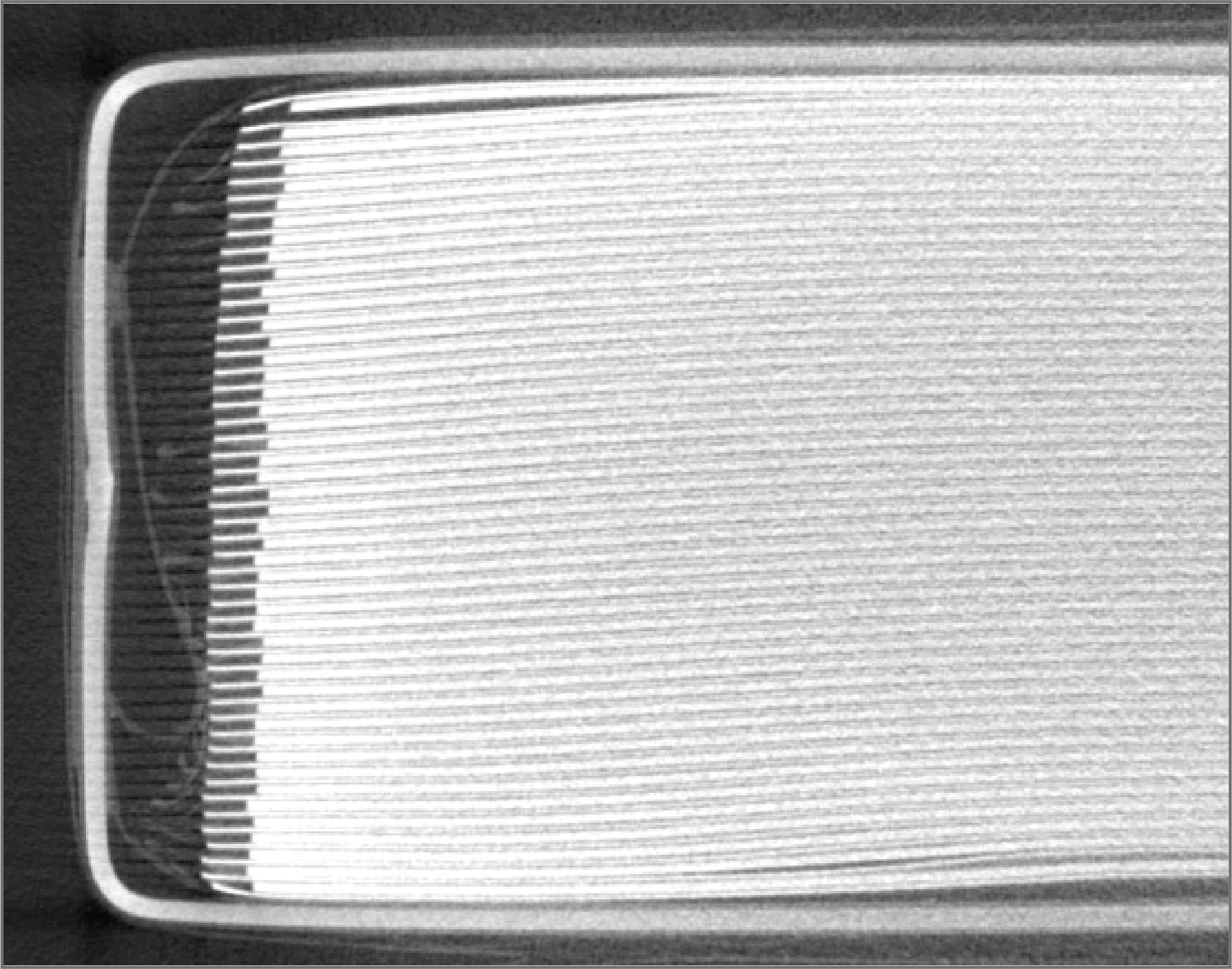

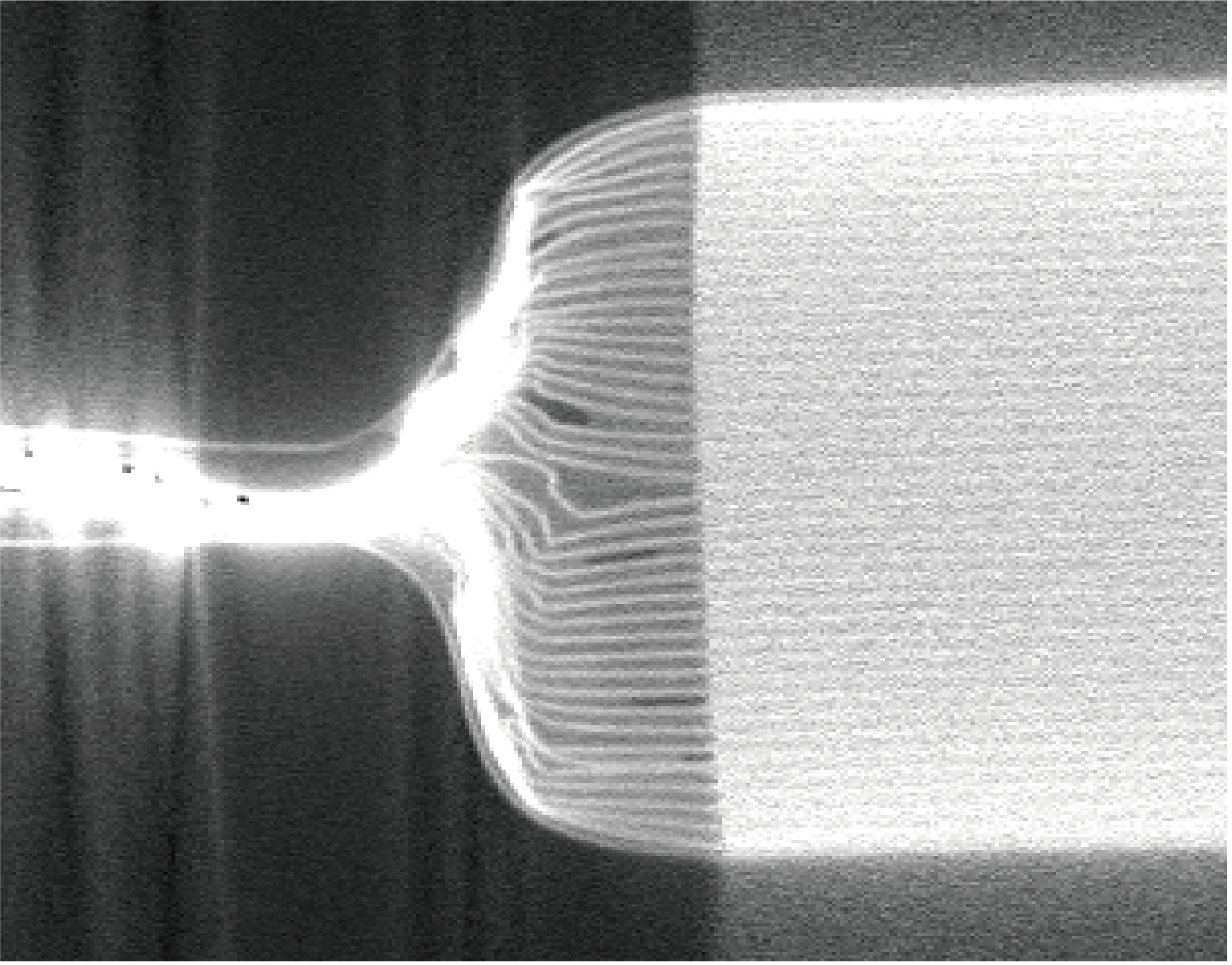

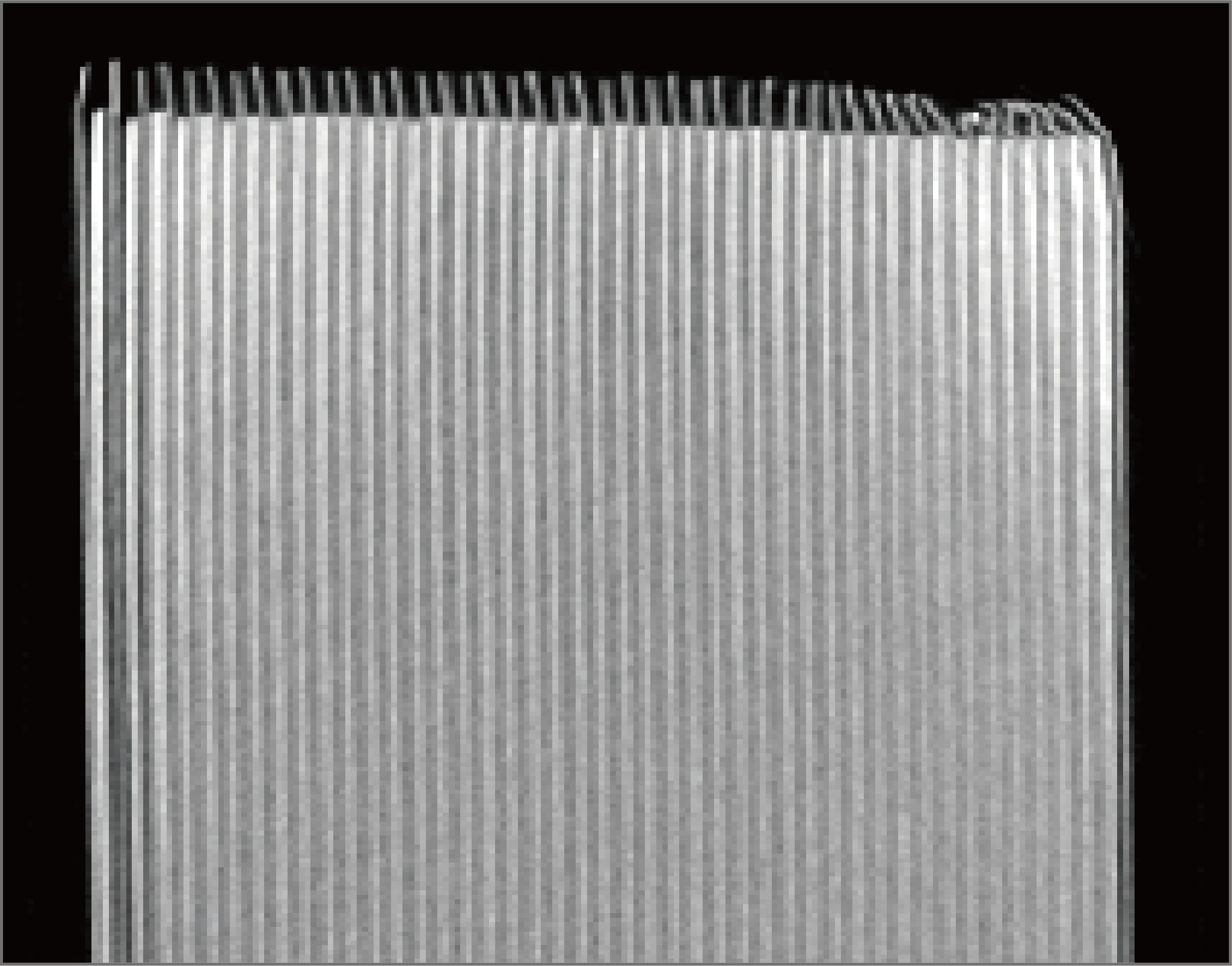

	Inspection Content	Electrode Overhang			Tab Bending, Tab-to-Case Collision

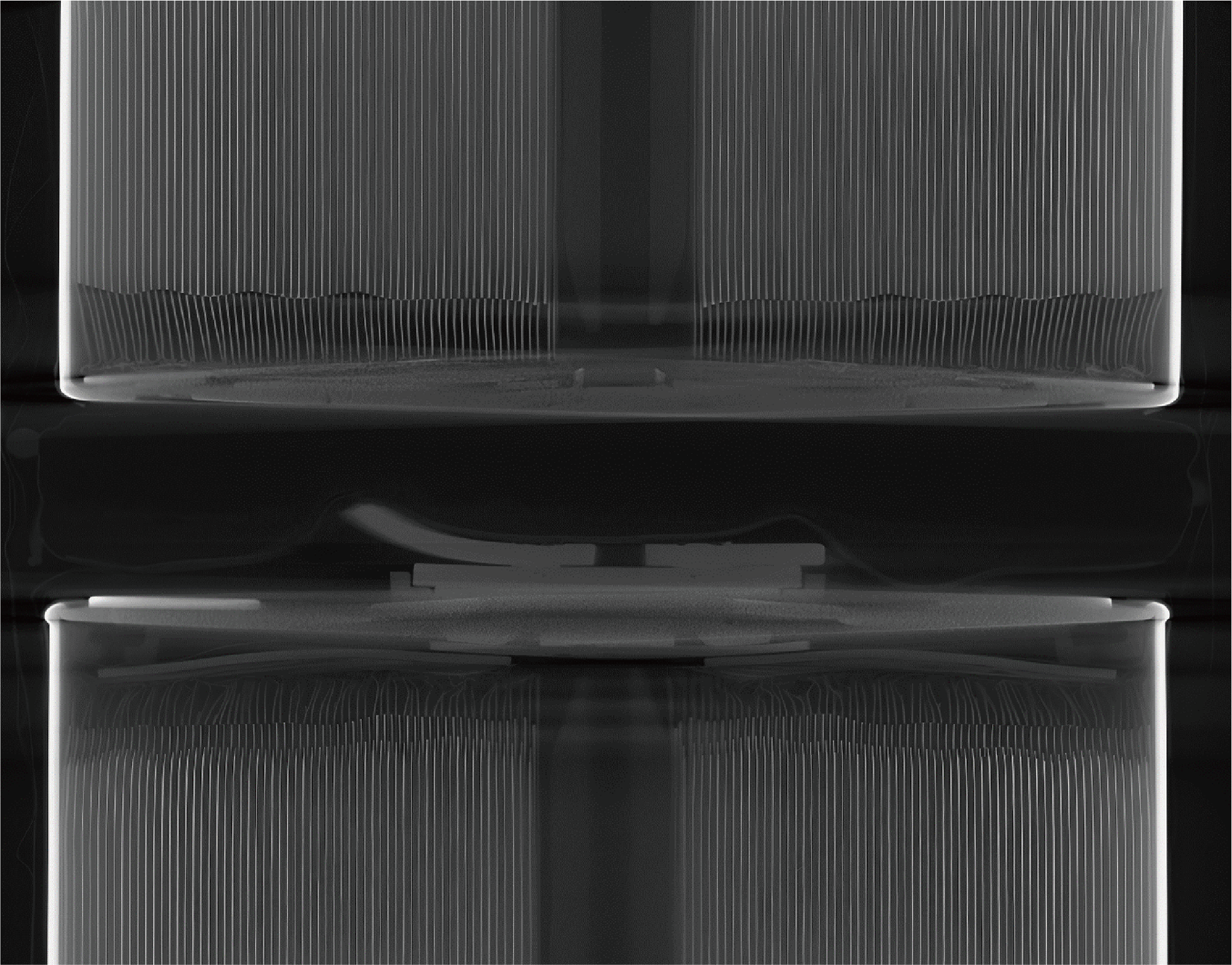

	Inspection Range	Bare Cells	Canned Laminated Cells	21700 / 18650 Cylindrical Cells	4680 Cylindrical Cells	Canned Laminated Cells
	Quantity of Imaging System	1 Set
	Throughput	10–12 PPM (Diagonal Inspection)	1.5–3 PPM (Triple-Angle Inspection)	60 PPM (Single-Side Inspection)	30 PPM (Single-Side Inspection)	6 PPM (Single-Angle Inspection)
	False Acceptance Rate	≤2%
	False Rejection Rate	0%
	Software	Self-developed Software by Gongyuan Sanqian; Volume Graphic (Optional)
X-ray Source	Tube Type	Sealed Tube
	Tube Voltage	130kV/150kV/180kV
	Focal Spot Size	5μm/20μm
Flat Panel Detector	Detector Type	Flat Panel Detector
	Pixel Size	139μm
	Pixel Matrix	3072×3072
Overall Specifications	Overall Dimension	L:4000mm W:3000mm H:2800mm (Excluding three-color warning light, subject to final design)
	Net Weight	Approx. 15000KG
	Rated Power	Approx. 10kW (Subject to final design)
