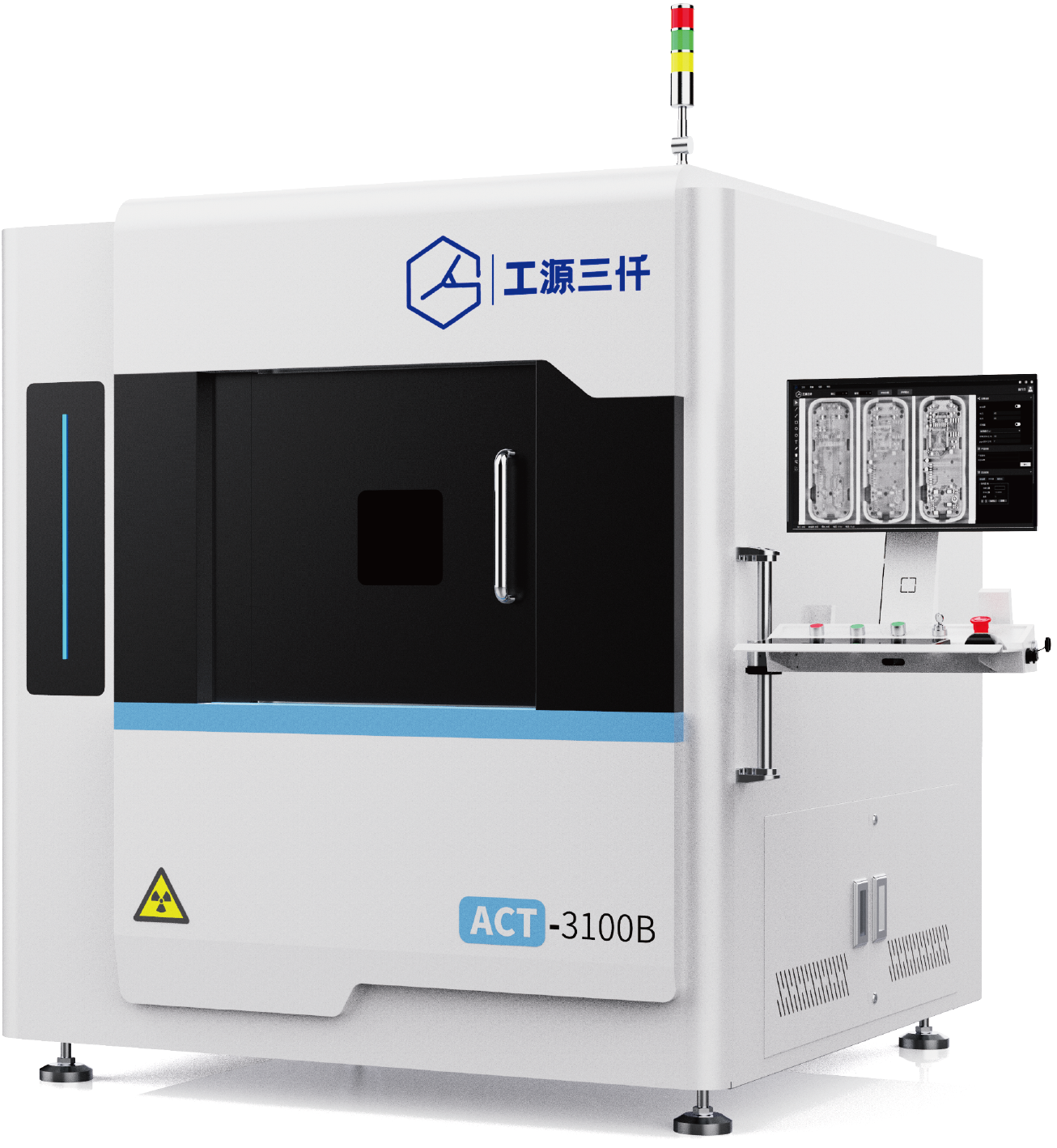

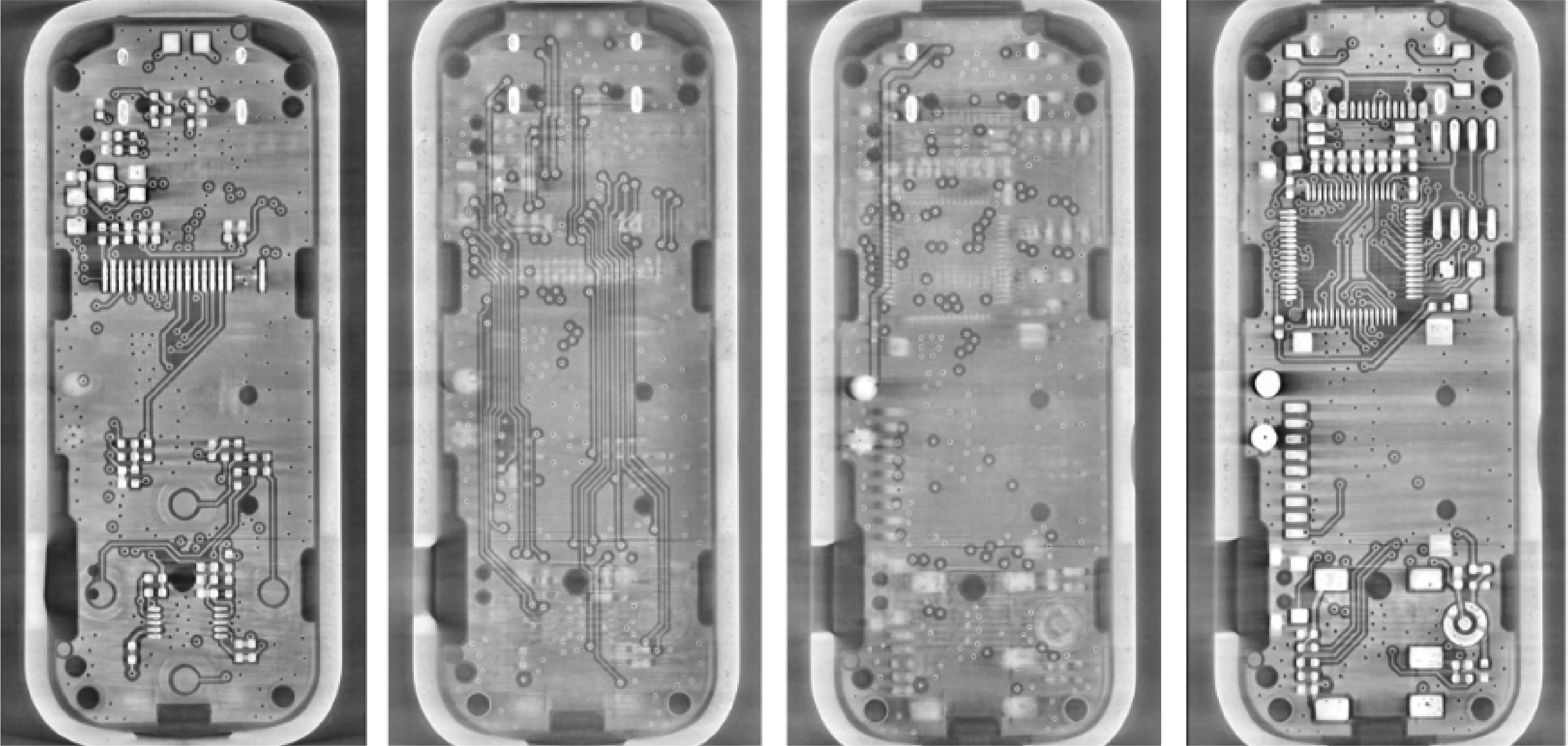

The ACT-3100B is an offline CT system independently developed by X3000 Inspection for fast, high-precision X-ray and CT scanning & reconstruction of small and medium-sized electronic products such as PCBA, chip packaging and IGBT modules.

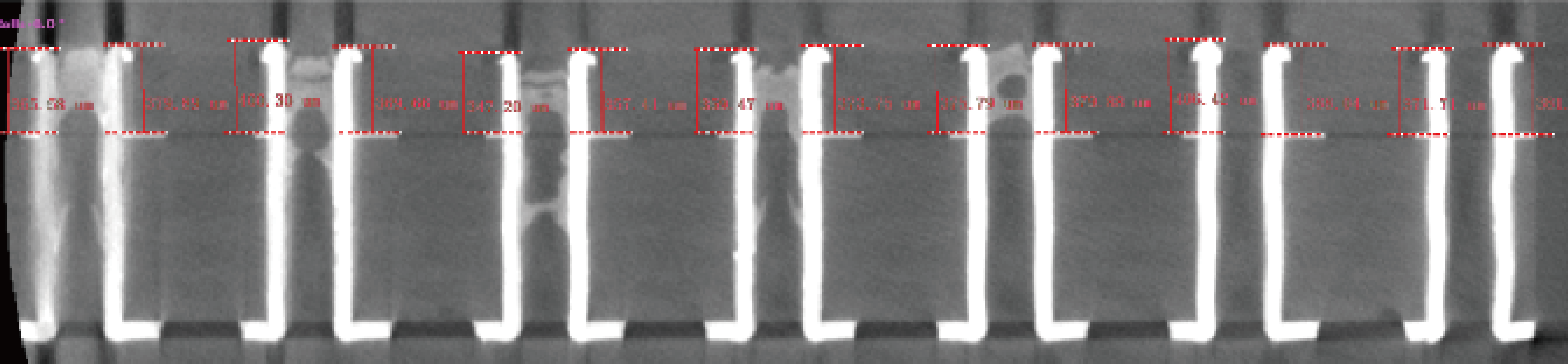

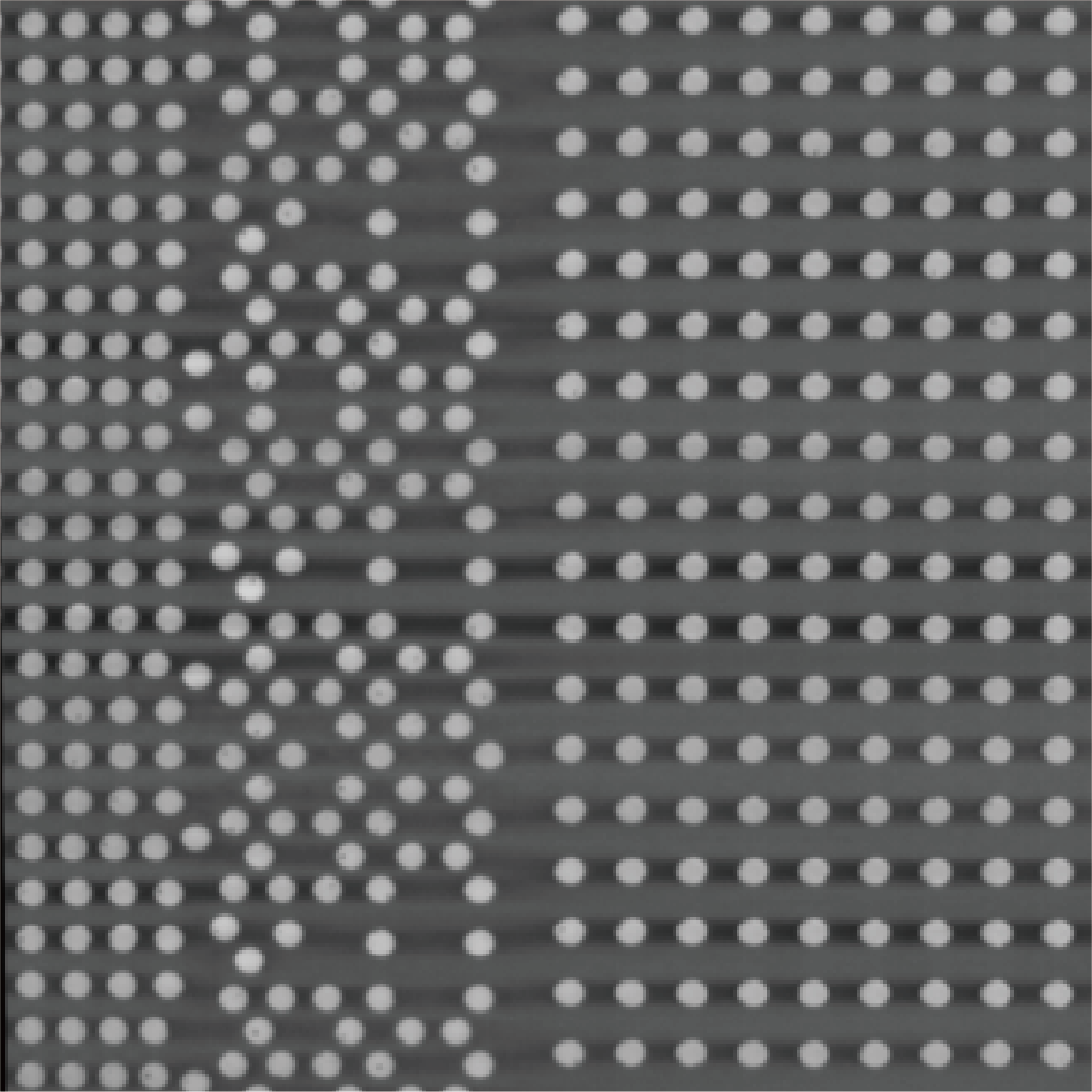

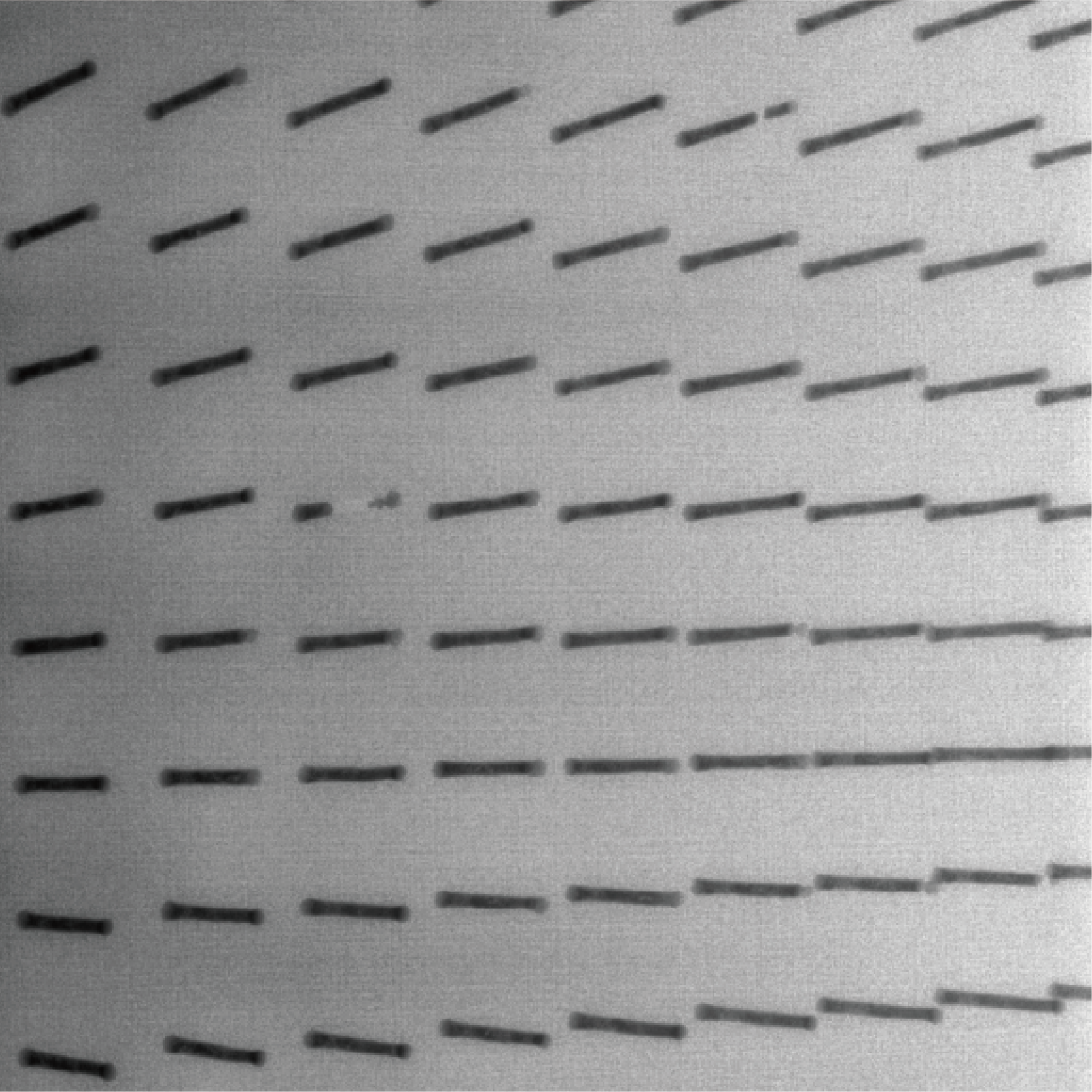

With self-developed high-performance CT imaging algorithms, the system drastically cuts the number of projections required for scanning, accelerates CT imaging speed, and enables effective detection of various soldering and packaging defects.

Category	Item	Parameter
Imaging System	CT System Resolution	2μm/1μm
	DR System Resolution	1μm/0.5μm
	CT Scanning Mode	CL (Rotary Disc) / CT (DD Motor)
	Software	Self-developed software by X3000 Inspection (Customizable for diverse requirements), Volume Graphic (Optional)
X-ray Source	Tube Type	Open Transmission Tube
	Tube Voltage	160kV
	Focal Spot Size	2μm/0.9μm
Detector	Detector Type	Flat Panel Detector
	Pixel Size	49.8μm
	Pixel Matrix	2340×2813

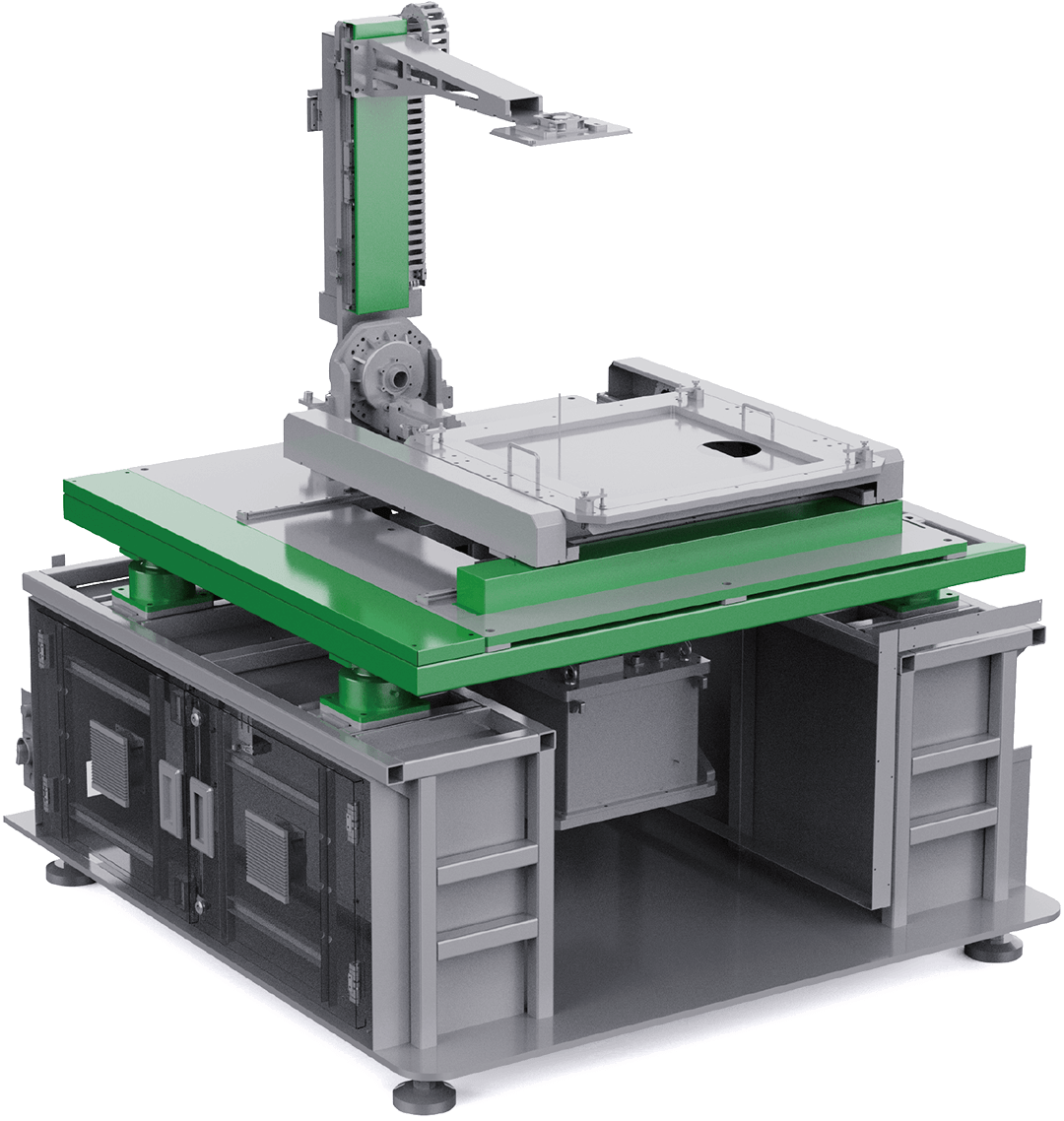

Motion Control System	X-ray Source Travel	Z-axis: 80mm
	Detector Travel	Z-axis: 450mm, B-axis: ±70°
	Stage Travel	X-axis: 500mm, Y-axis: 500mm
	Rotary Table	C-axis: 360°
	Standard Table Range (DR)	520mm×520mm
	Rotary Table Range (CL)	Φ410mm
	Chuck Load Range (CT)	Length: 280mm
	Automatic Navigation	Records coordinate positions and parameters of feature points for fast positioning to inspection points
Overall Specifications	Control Mode	Mouse, Keyboard, Joystick, Software
Overall Specifications	Overall Dimension	L:1744mm W:1726mm H:1910mm (Excluding three-color warning light, subject to final design)
Overall Specifications	Net Weight	Approx. 3500KG
Overall Specifications	Rated Power	Approx. 8kW (Subject to final design)
