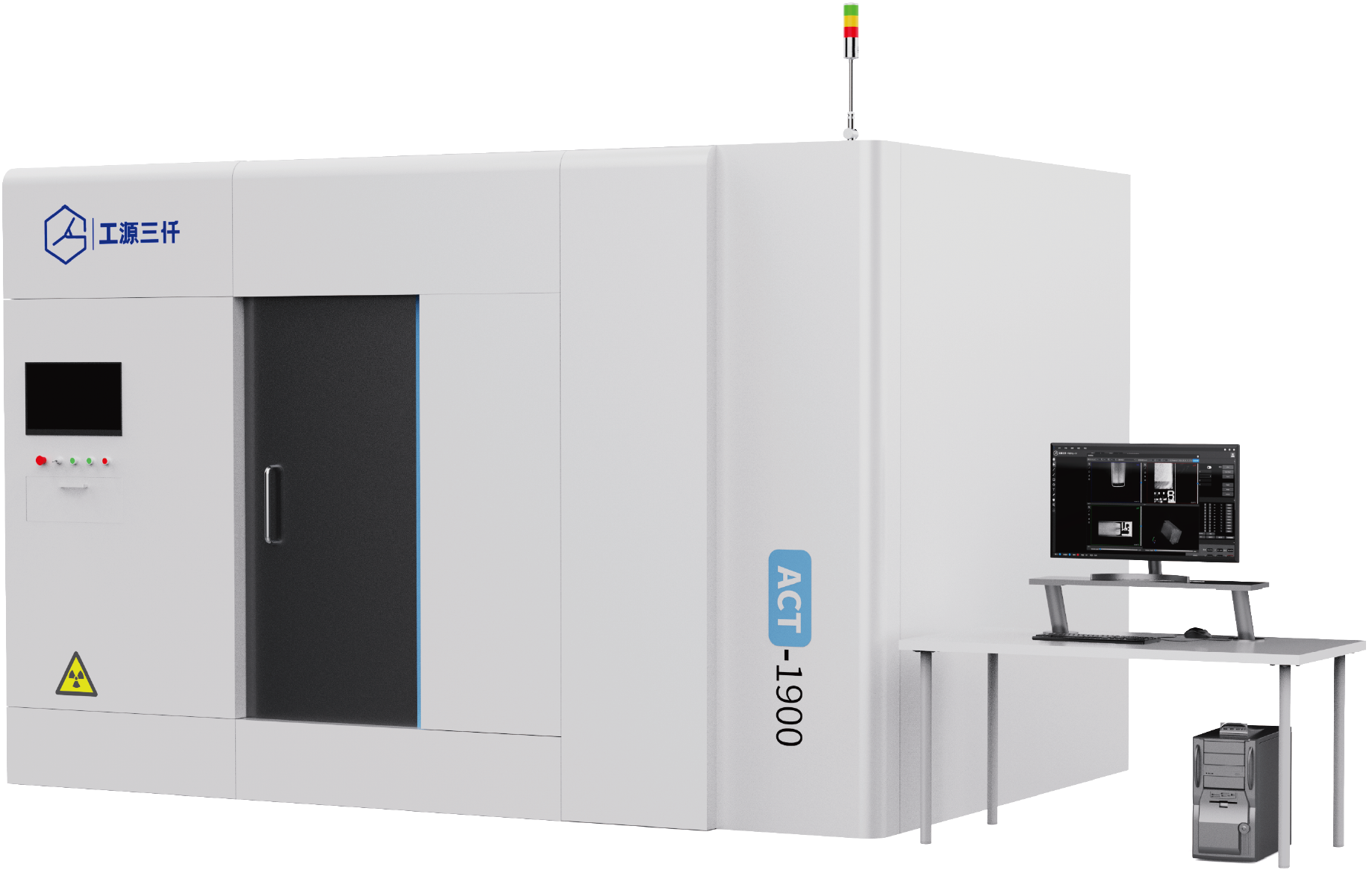

ACT-1900 is a detection device independently developed by X3000 Inspection for offline CT analysis of various types of industrial products. Based on its self-developed high-performance CT imaging algorithm, Gongyuan Sanqian can significantly reduce the number of projections required in the scanning process and enhance the speed of CT imaging. This device exhibits great applicability in detecting internal issues of batteries, including but not limited to detecting overhangs, electrode wrinkles/folds, and foreign object issues in lithium batteries and modules. Furthermore, the device can also inspect electronic products such as connectors and chips, as well as metal components like gas turbines and aero-engines.

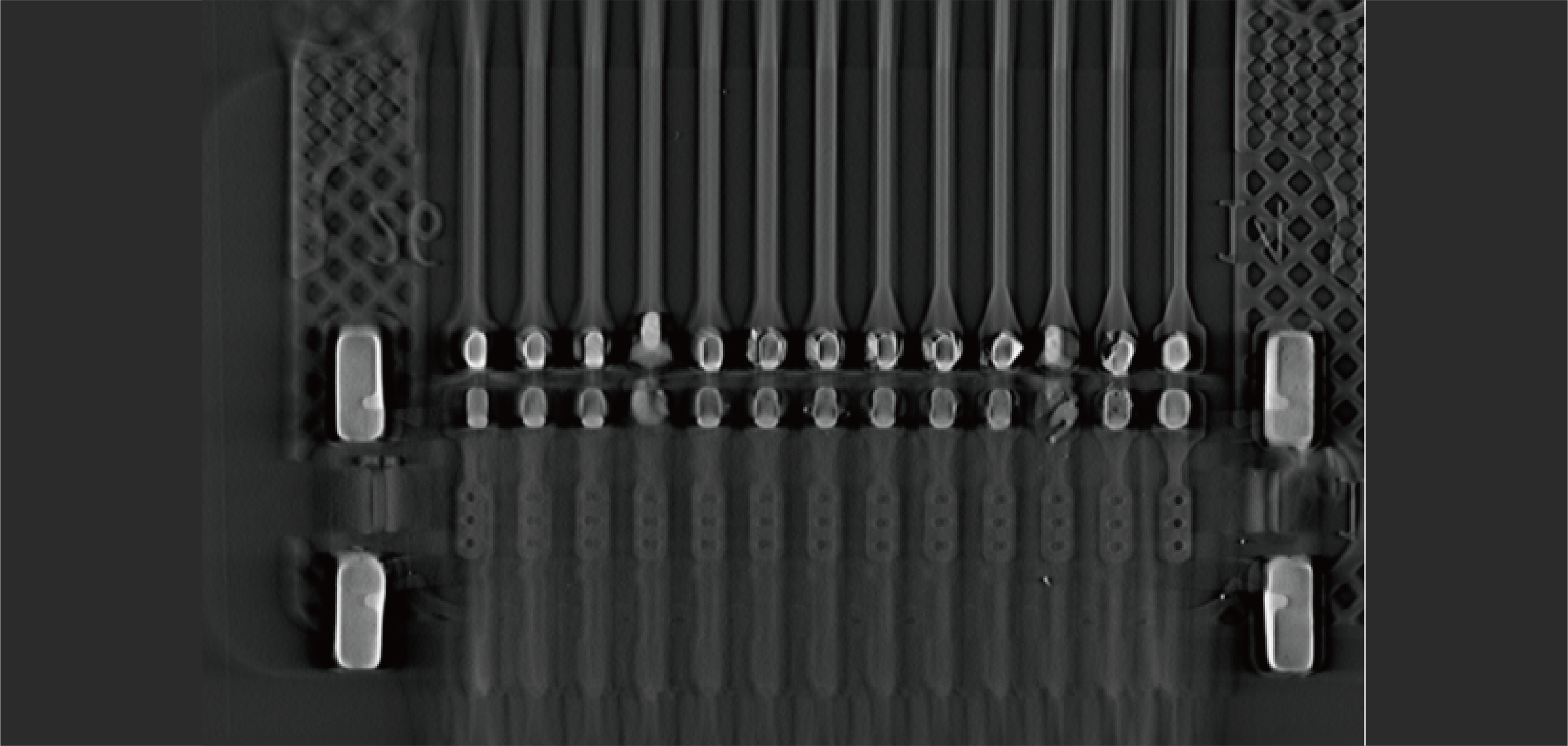

◈ Electronics: Circuit layout of multi-layer circuit boards, solder layer porosity detection and DBC crack detection of multi-layer IGBT/SiC modules, and solder paste filling of automotive electronic modules

"Chong proportion, etc."

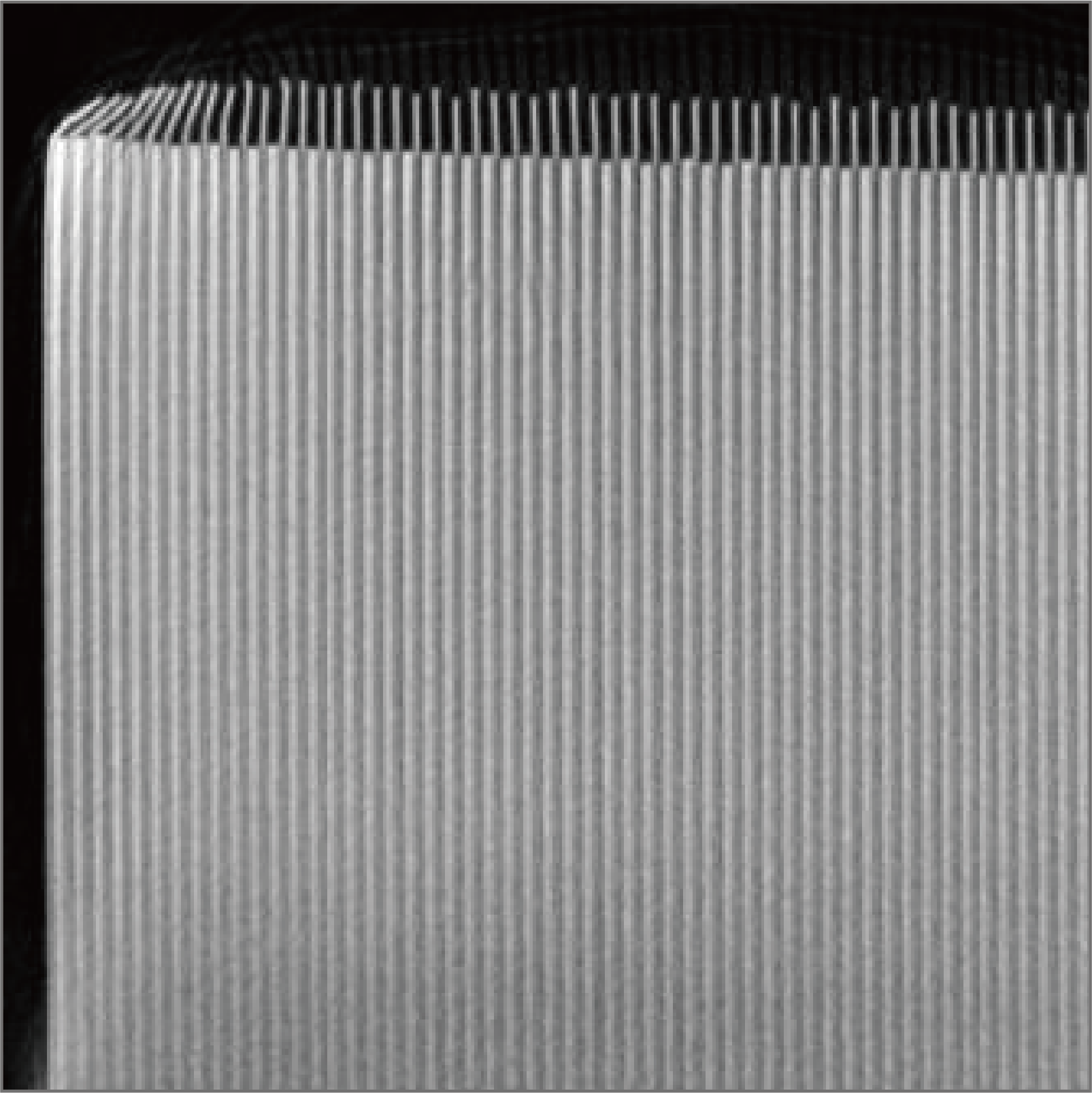

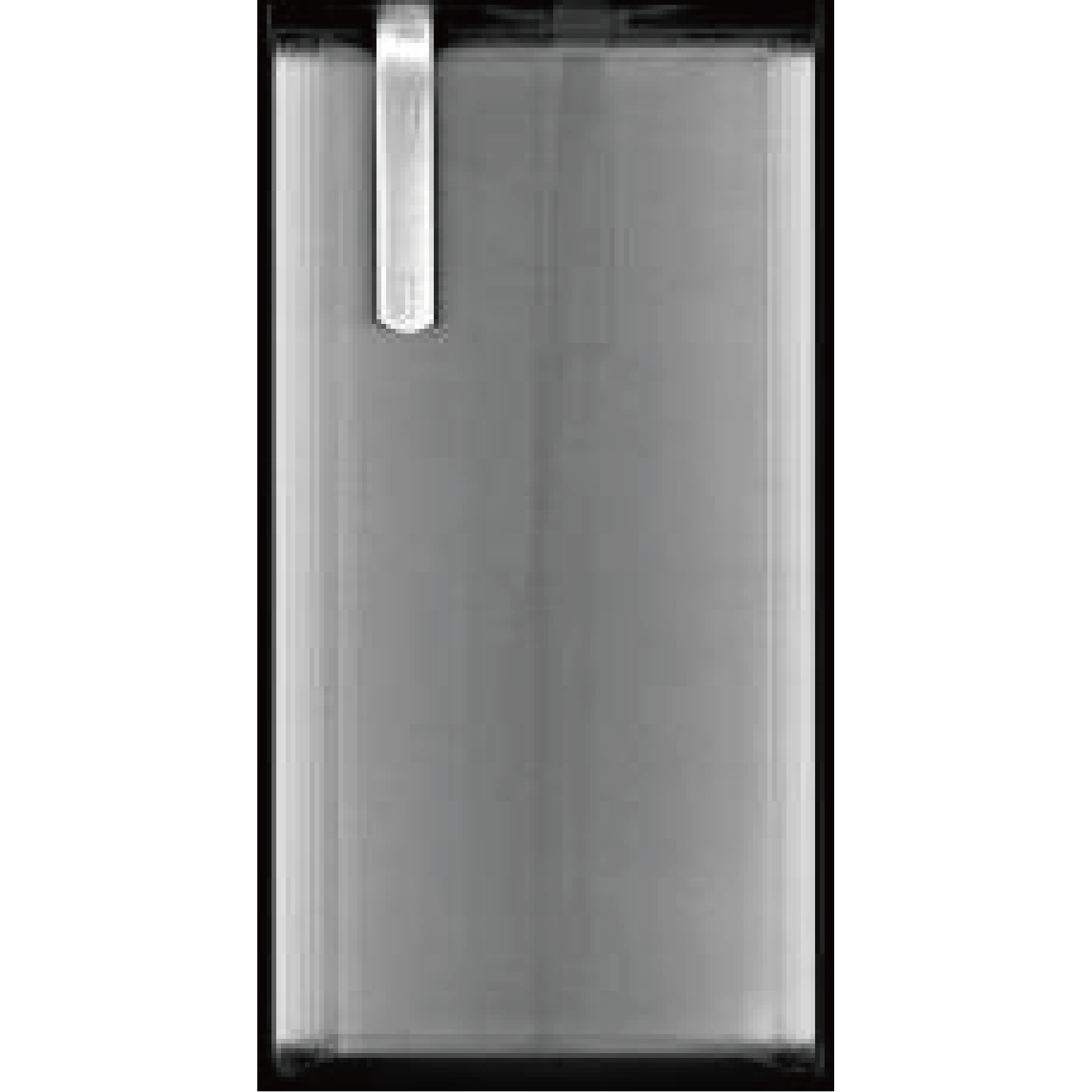

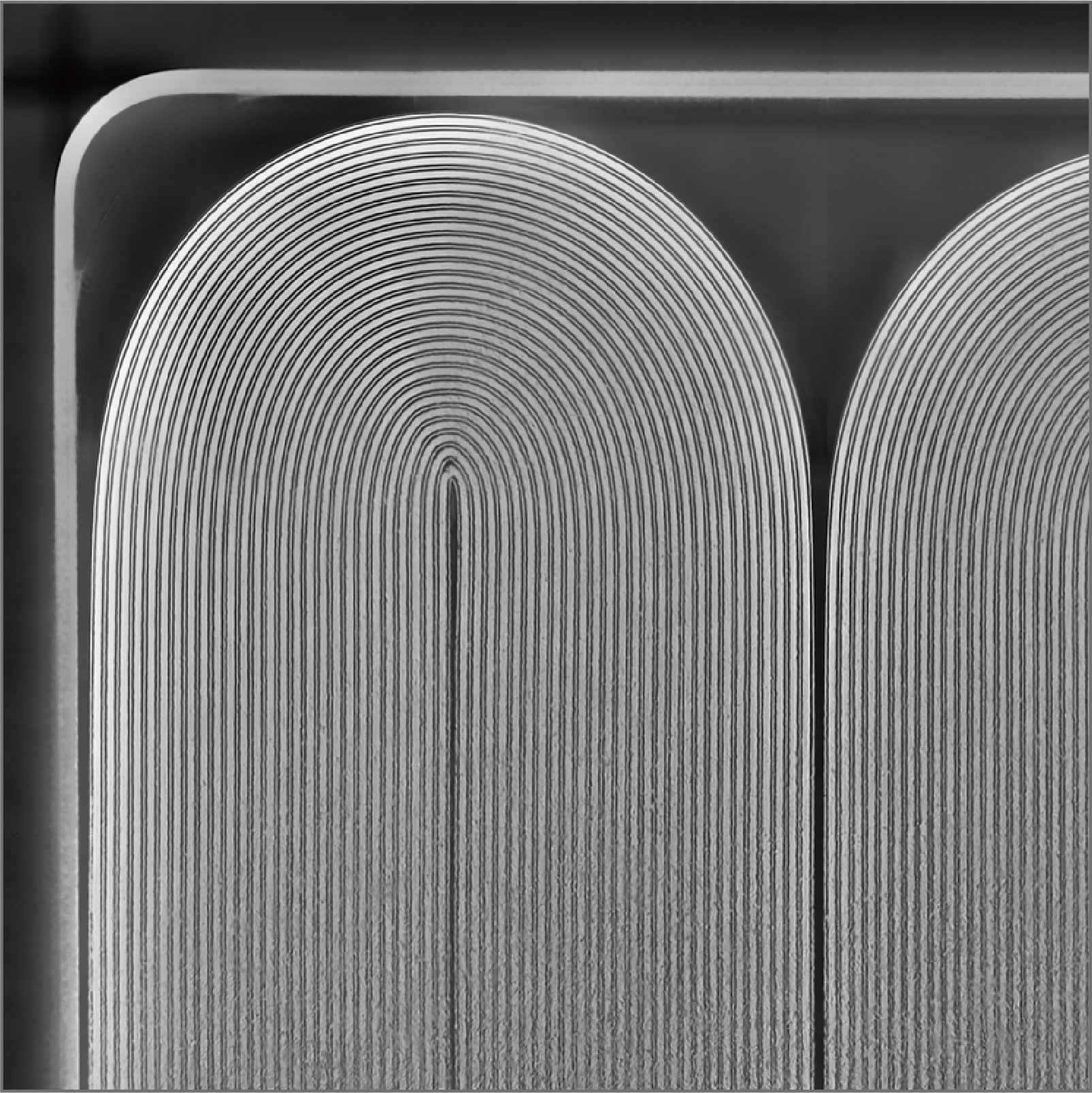

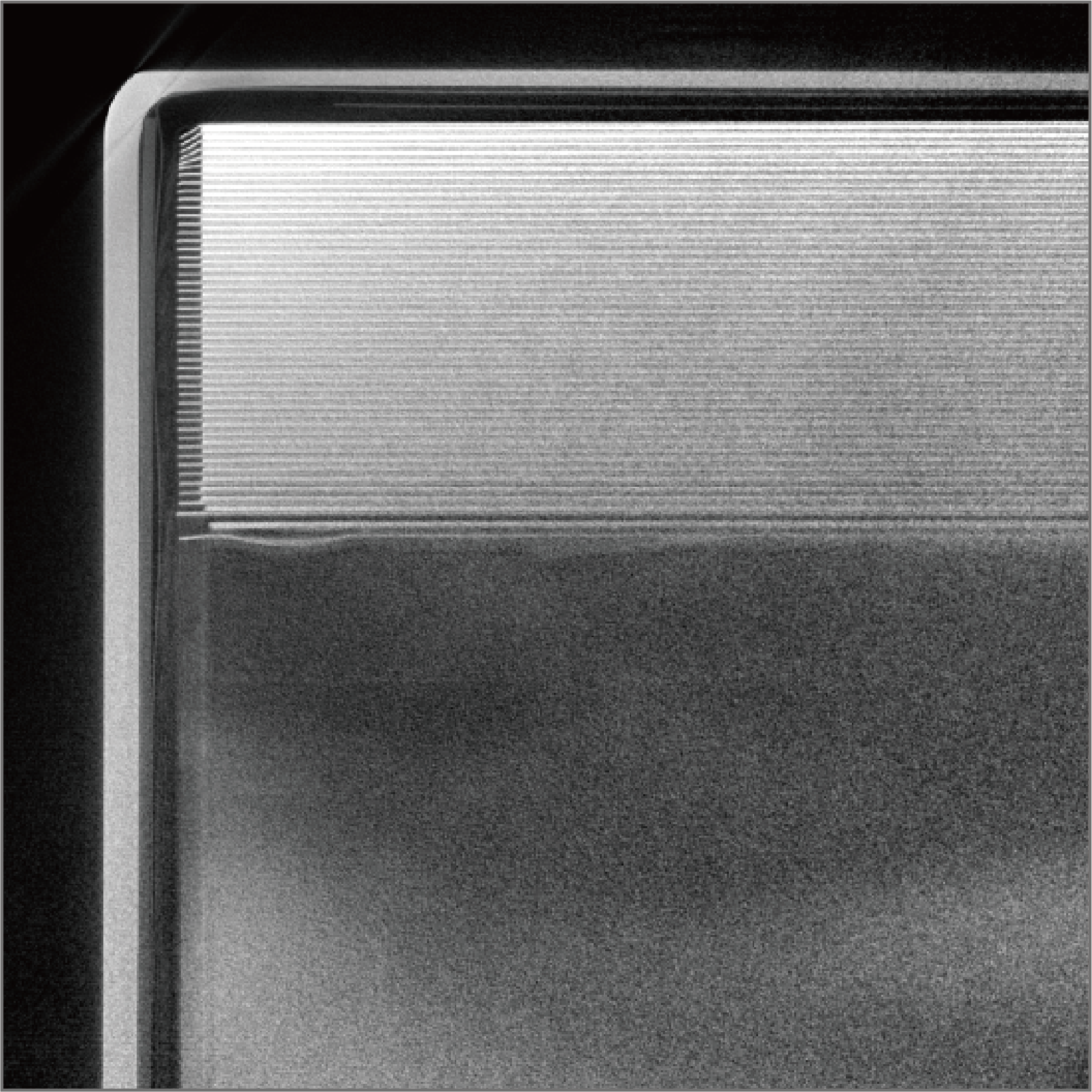

◈ Battery: In-case battery grade piece overhang, large surface wrinkles, foreign objects, cylindrical battery concentricity detection, etc

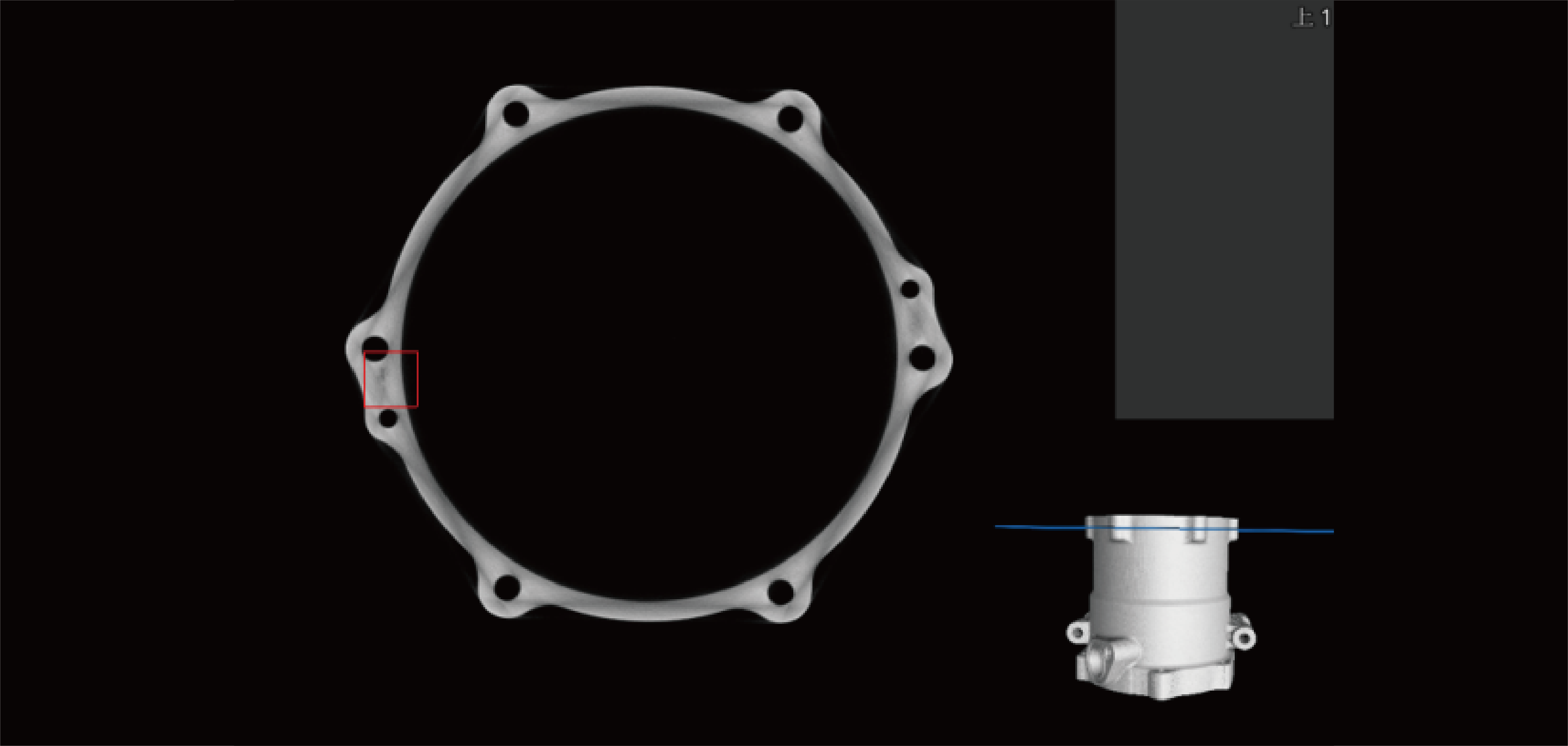

◈ Weldments/Castings/High-temperature alloys: Detection of defects such as welds, cracks, porosity, and inclusions, with the ability to measure true crack length, porosity ratio, etc

category	project	parameter
imaging system	System ultimate resolution	10μm/2μm/2.5μm/200μm
	imaging method	2D&3D
	software	工源三仟自研CT软件（可根据不同需求定制）Volume Graphic（选配）
radiation source	Tube type	闭管/开管
	Tube voltage	180kV/225kV/300kV/450kV
	focal spot size	20μm/4μm/5μm/400μm
detector	detector type	平板探测器
	pixel dimensions	139μm
	pixel matrix	3072x3060

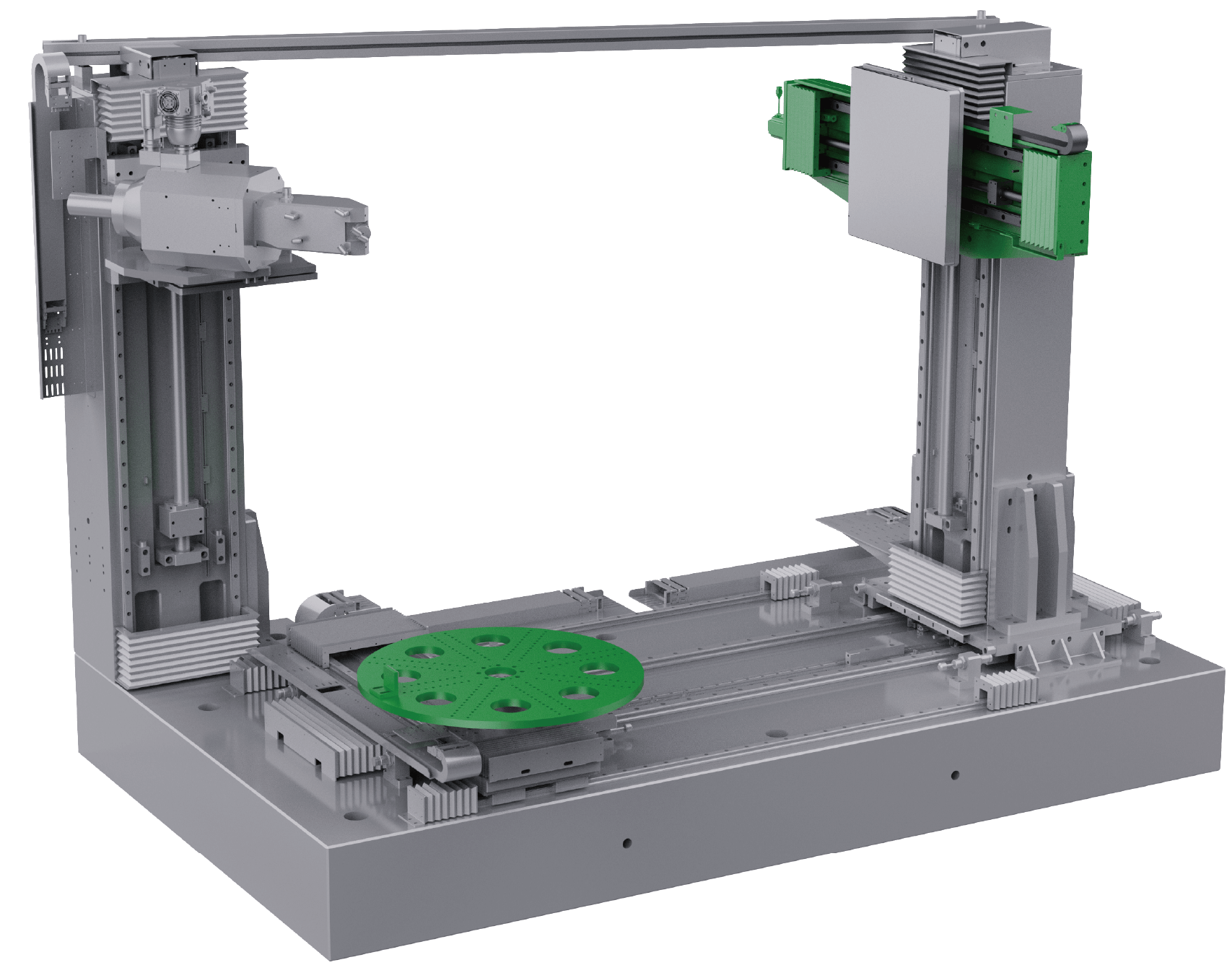

Motion control system	scanning range	1200*600*700mm（可根据不同需求定制）
	Maximum sample weight	25KG
	Repetitive positioning accuracy of radiation source movement	±10μm
	Repeat positioning accuracy of detector movement	±10μm
Overall Machine Parameters	size	L:3226 mm W:1949mm H:2345mm（不含三色灯，以实际设计为准）
	weight	约10000KG
	power	约10kW（以实际设计为准）
