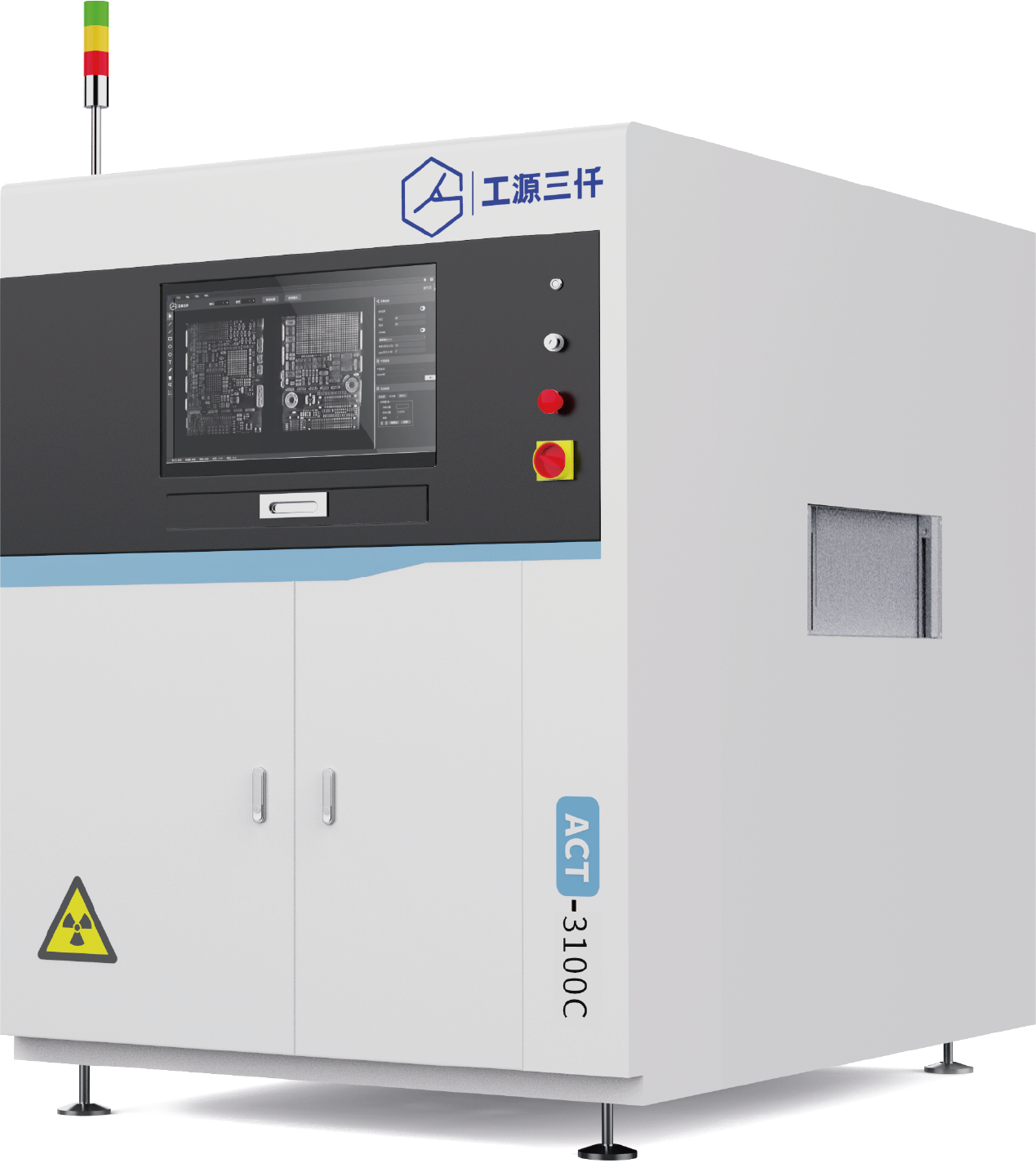

The ACT-3100C is an inline planar CT system developed by X3000 Inspection for rapid CT scanning, reconstruction and analysis of SMT/THT soldering, IGBT module packaging and related applications.

Powered by proprietary high-speed CT imaging algorithms and a precision marble motion platform, the system reduces the number of required DR projections to significantly improve CT scanning efficiency.

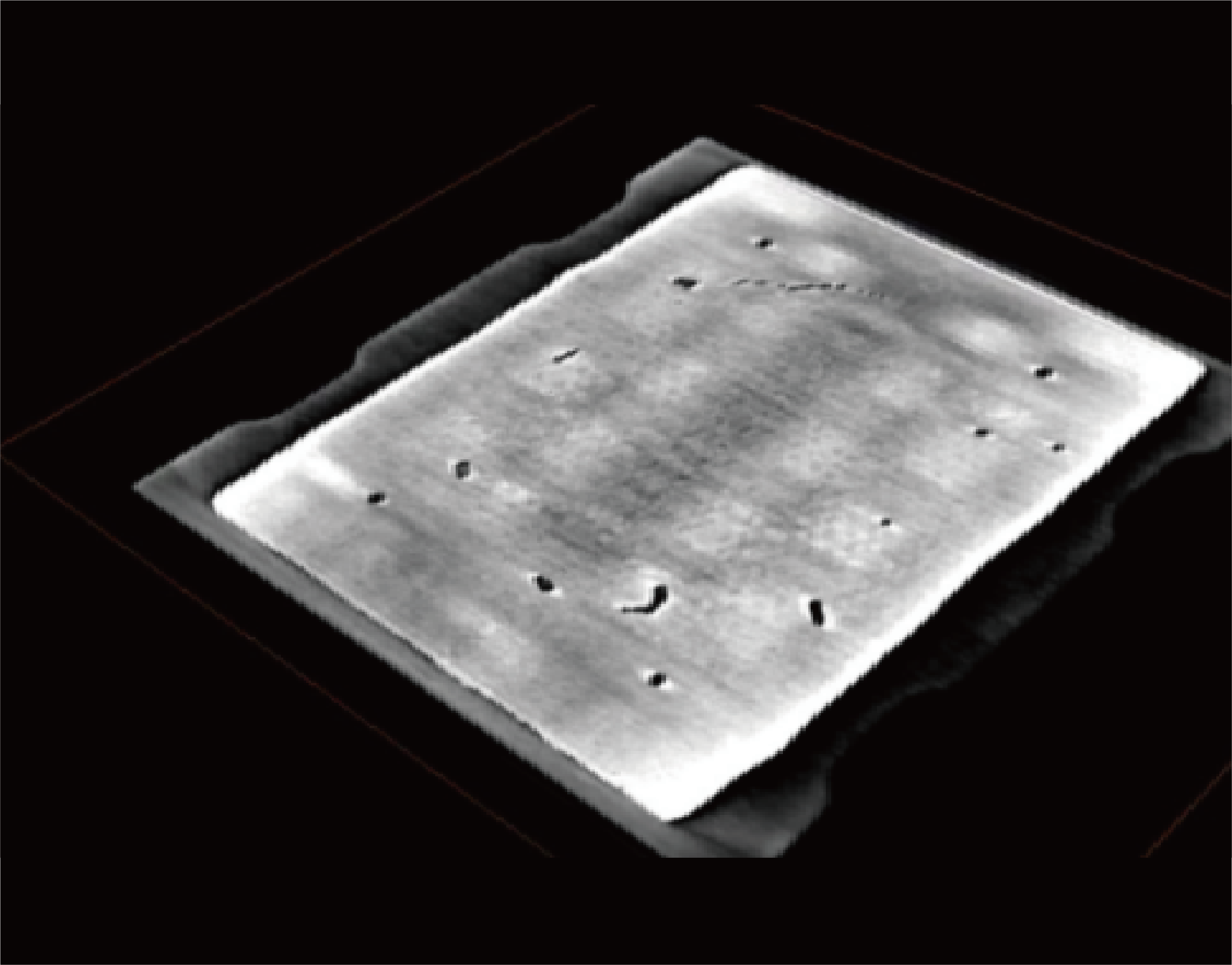

Custom deep learning-based recognition algorithms achieve a defect identification accuracy of over 99% for voids, solder climbing height, foreign contaminants and other typical flaws.This system is widely applied to electronic products with SMT/THT soldering processes, IGBT modules and a full range of automotive electronic assemblies.

◈ Automotive Electronics Inspection

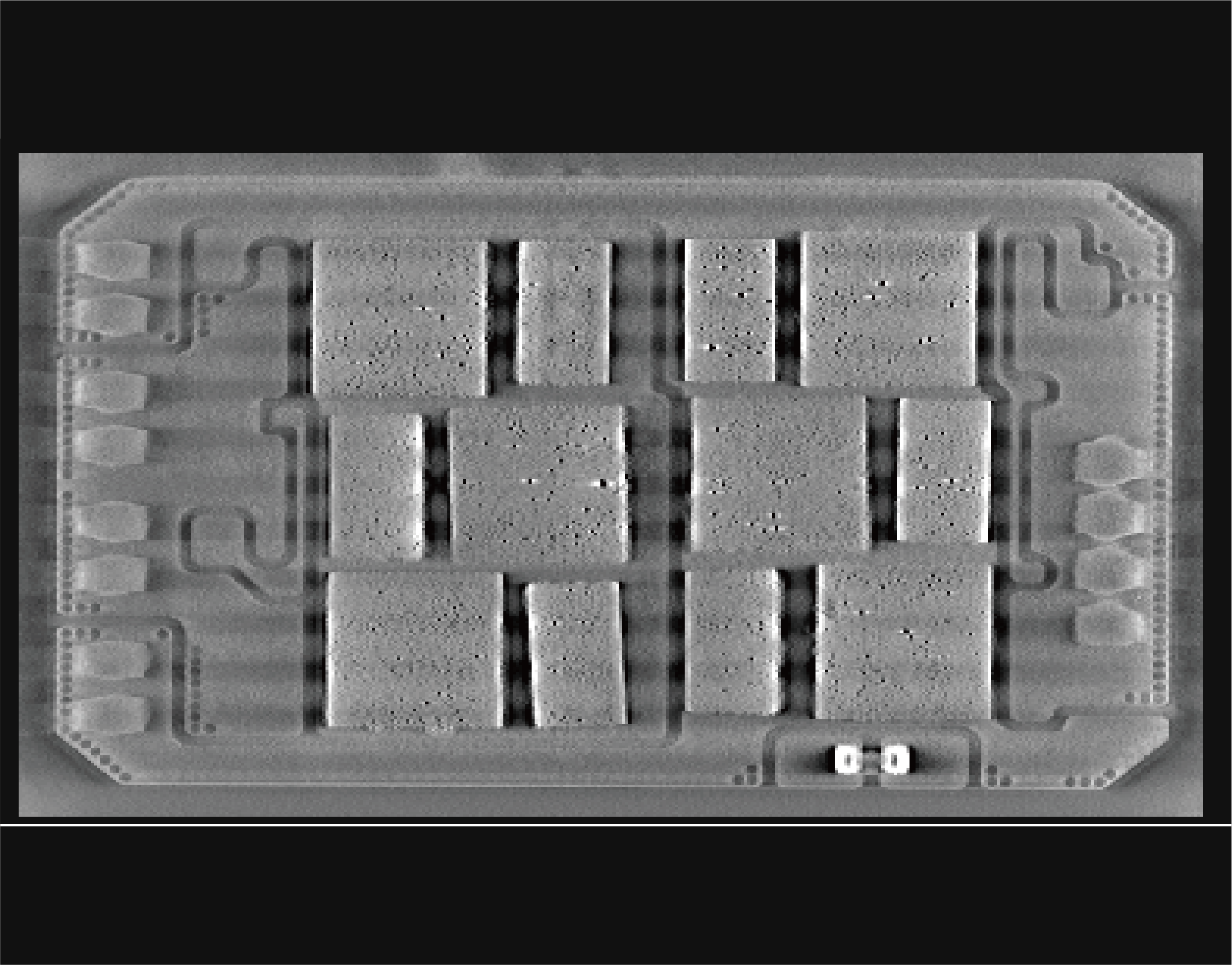

Verifies structural integrity, interconnection status and other critical internal defects of automotive electronics and IGBT power modules.

◈ PCB Inspection

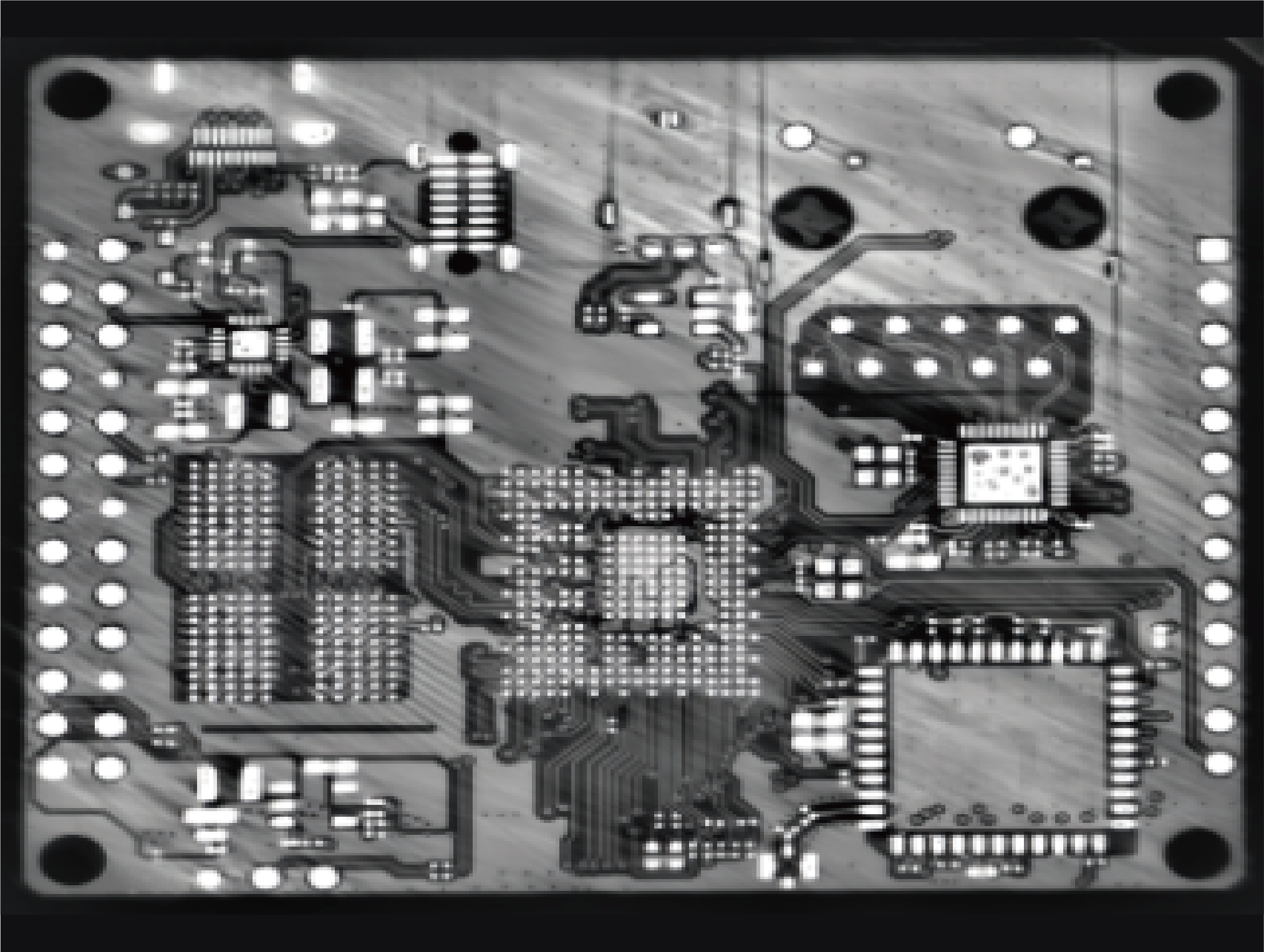

Focuses on PCB back-drilling quality inspection including inner-hole residues and aperture dimensional accuracy to prevent abnormal circuit signal transmission.

◈ Package Substrate Inspection

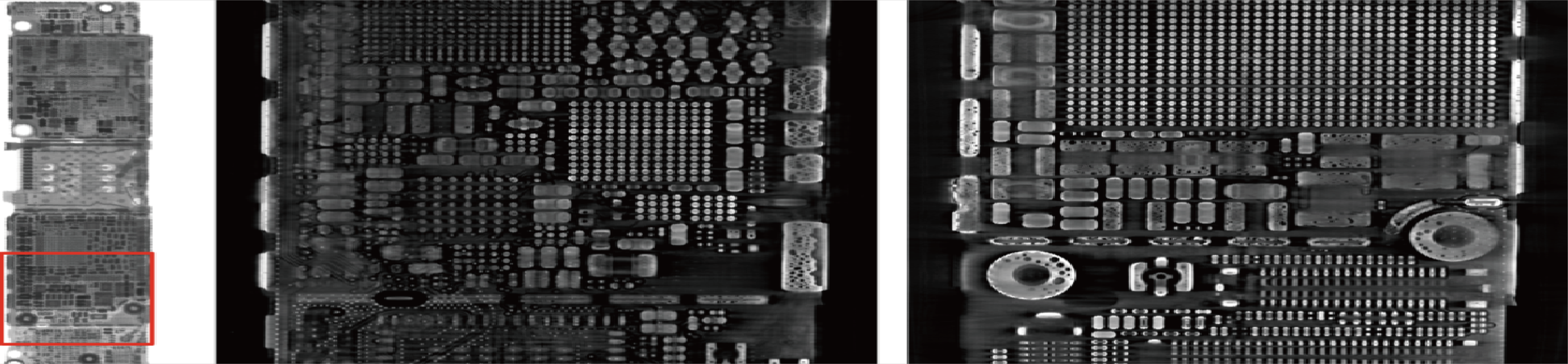

Specialized in detecting internal traces, solder joints and structural defects of package substrates to guarantee the fundamental reliability of chip packaging.

Category	Item	Parameter
Imaging System	System Maximum Resolution	4μm/10μm
	Inspection Mode	2D & 3D
	Software	Self-developed software by X3000 Inspection (Customizable for diverse requirements), Volume Graphic (Optional)
X-ray Source	Tube Type	Sealed Tube
	Tube Voltage	130kV/180kV
	Focal Spot Size	8μm/20μm
Detector	Detector Type	Flat Panel Detector
	Pixel Size	49.5μm
	Pixel Matrix	2352×2944

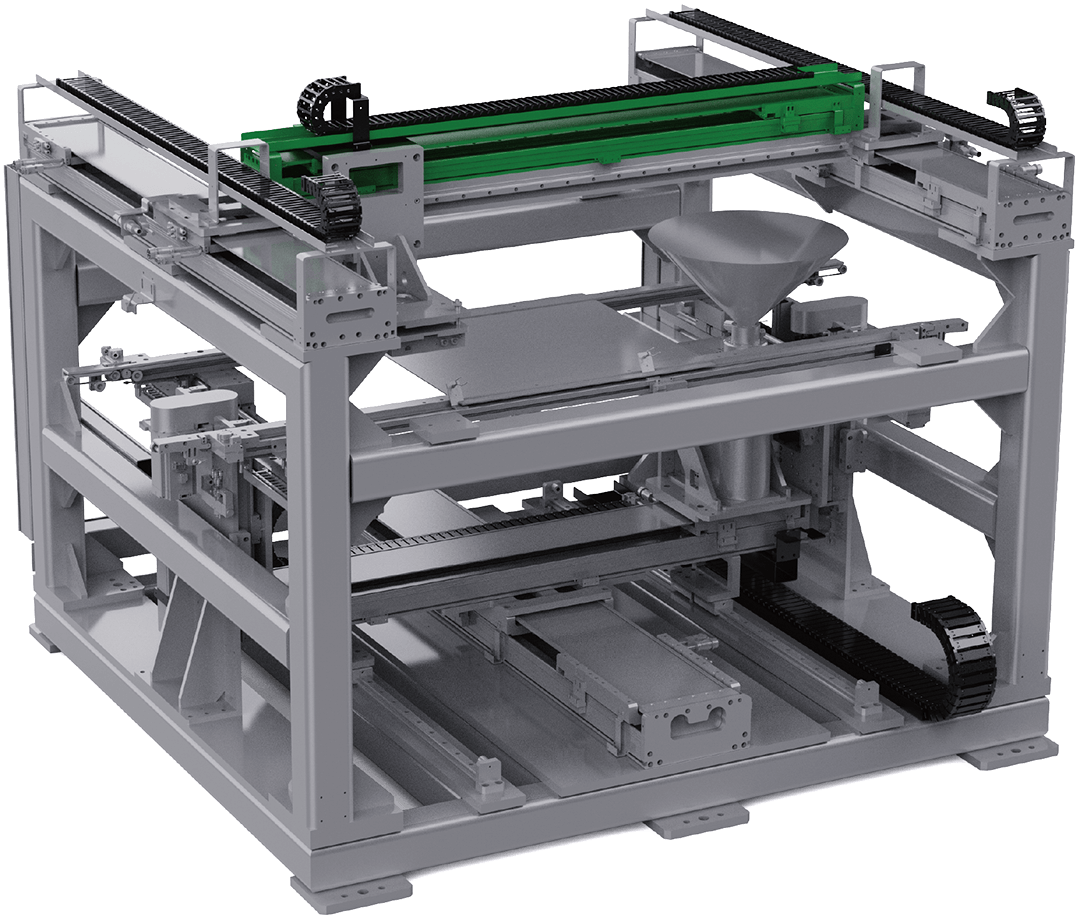

Motion Control System	X-ray Source Travel	X-axis: 1000mm; Y-axis: 1100mm
	Detector Travel	X-axis: 1000mm; Y-axis: 1200mm
	Stage Travel	Z-axis: 200mm
	Board Loading Mode	Left In Left Out, Left In Right Out, Right In Left Out, Right In Right Out
	Compatible Product Thickness	0.4mm–5mm (Customizable)
	Maximum Inspection Range	600mm×600mm (Customizable)
	Maximum Component Height	Top: 50mm, Bottom: 50mm (Customizable)
	Allowable Board Warpage	≤3mm
	Maximum Load Capacity	10KG (Customizable)
Overall Specifications	Overall Dimension	L:2000mm W:2000mm H:1700mm (Excluding three-color warning light, subject to final design)
	Net Weight	Approx. 3500KG
	Rated Power	Approx. 8kW (Subject to final design)
