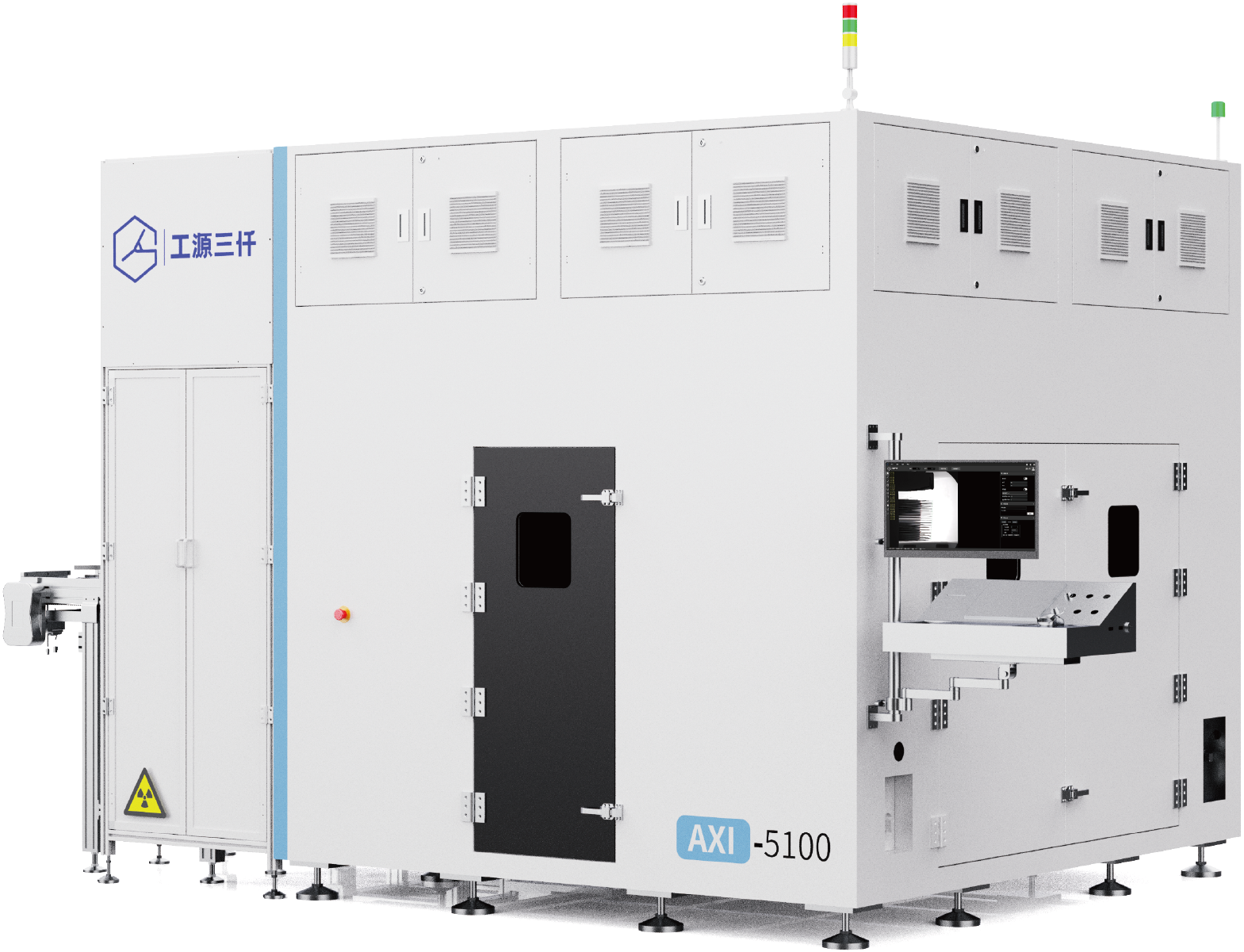

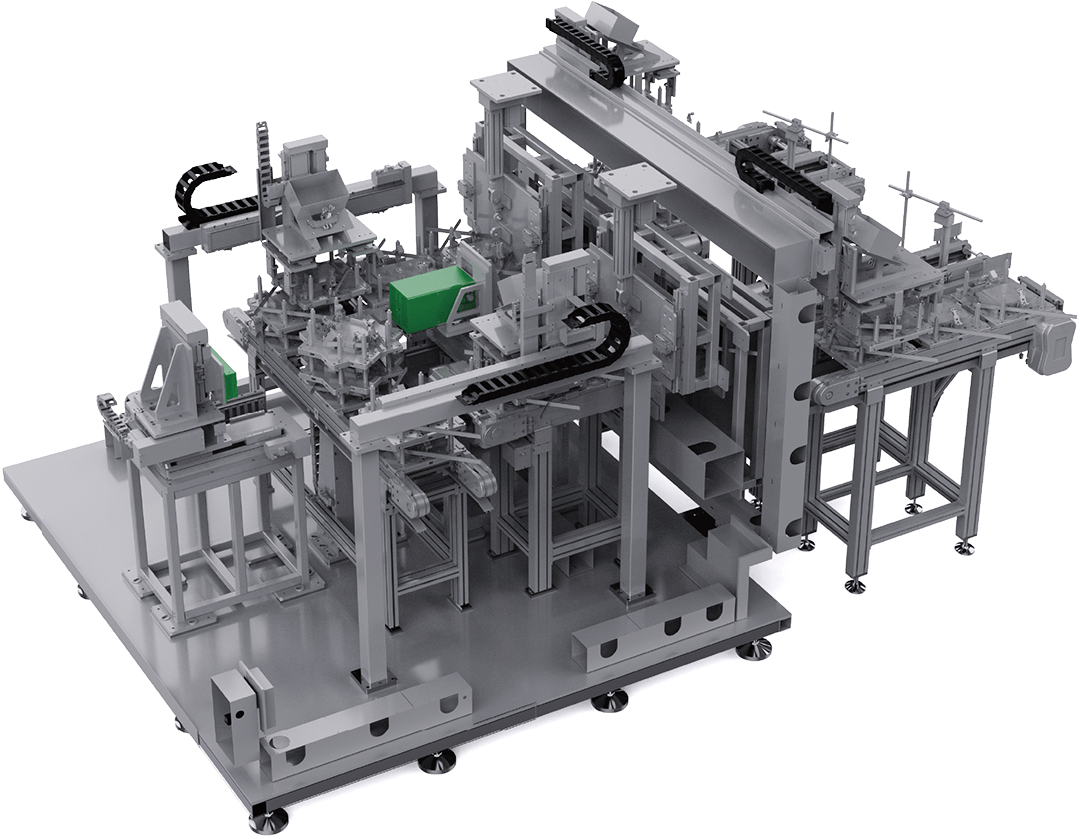

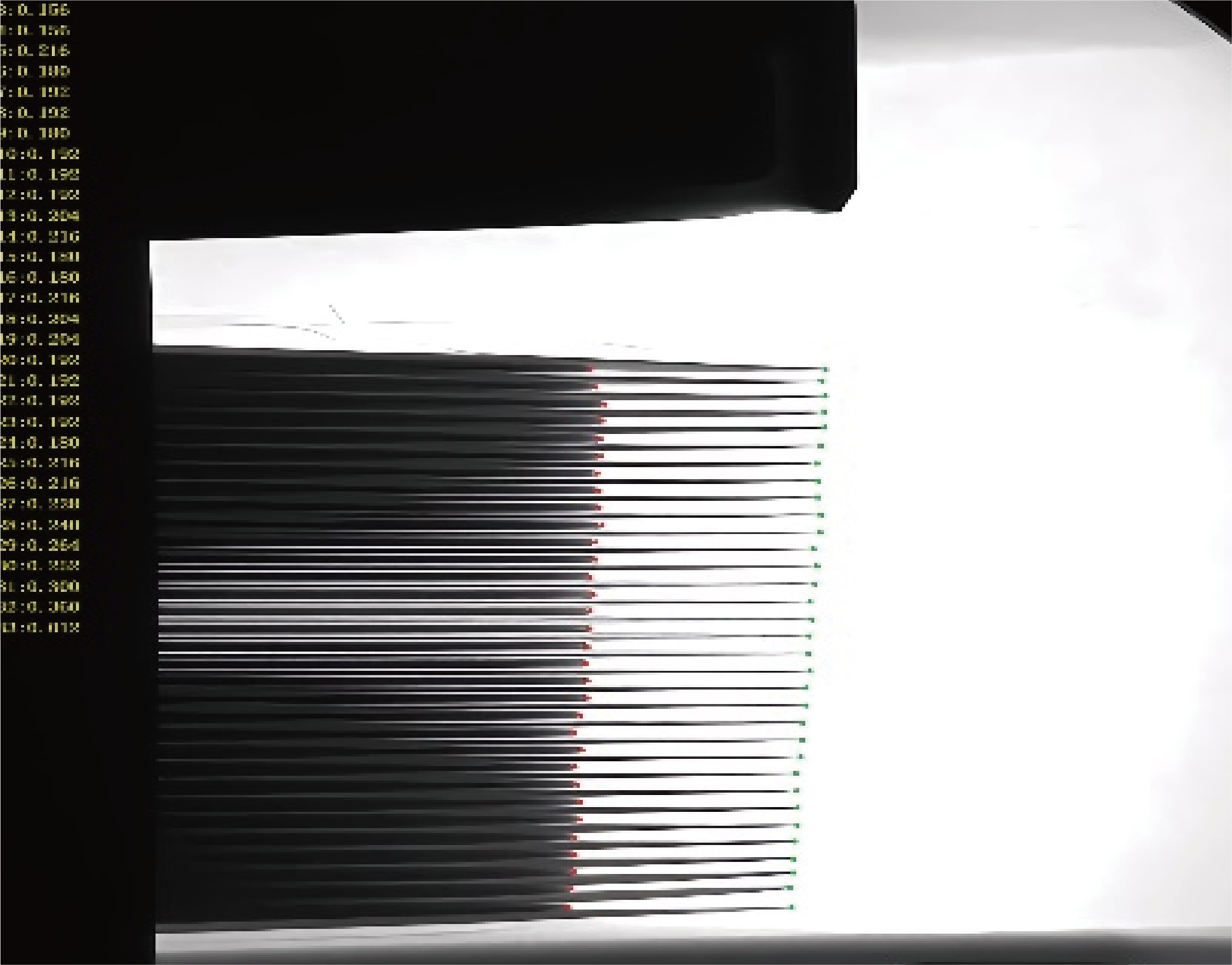

AXI-5100 is an inline X-Ray inspection system independently developed by X3000 Inspection for high-speed X-ray testing of various laminated batteries, achieving a maximum throughput of 18 PPM with a single X-ray source for diagonal electrode overhang inspection.

Equipped with our self-developed high-performance visual imaging system to boost single-shot inspection efficiency, the device adopts an AI algorithm customized for laminated battery overhang detection and delivers an inspection accuracy of over 99%.

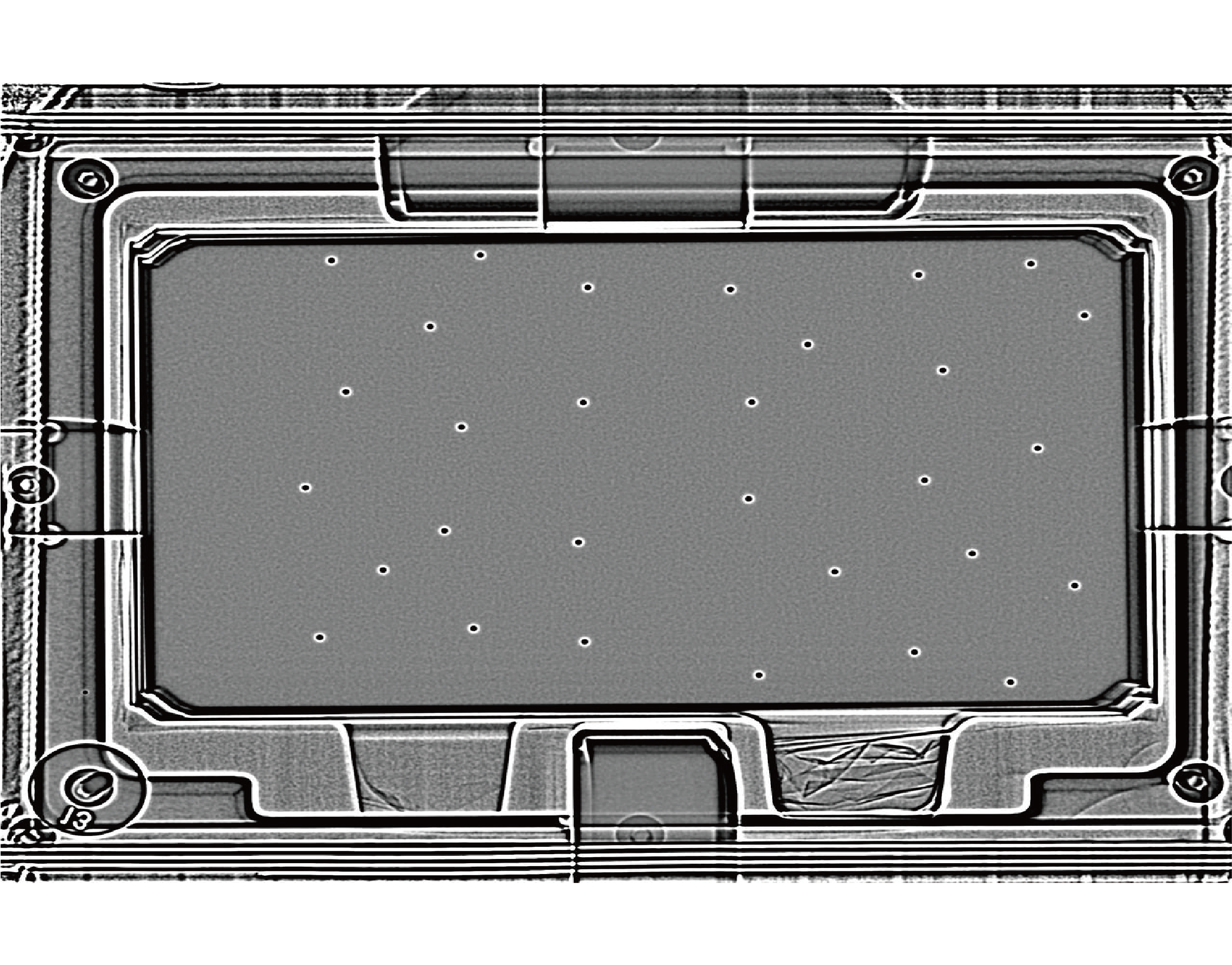

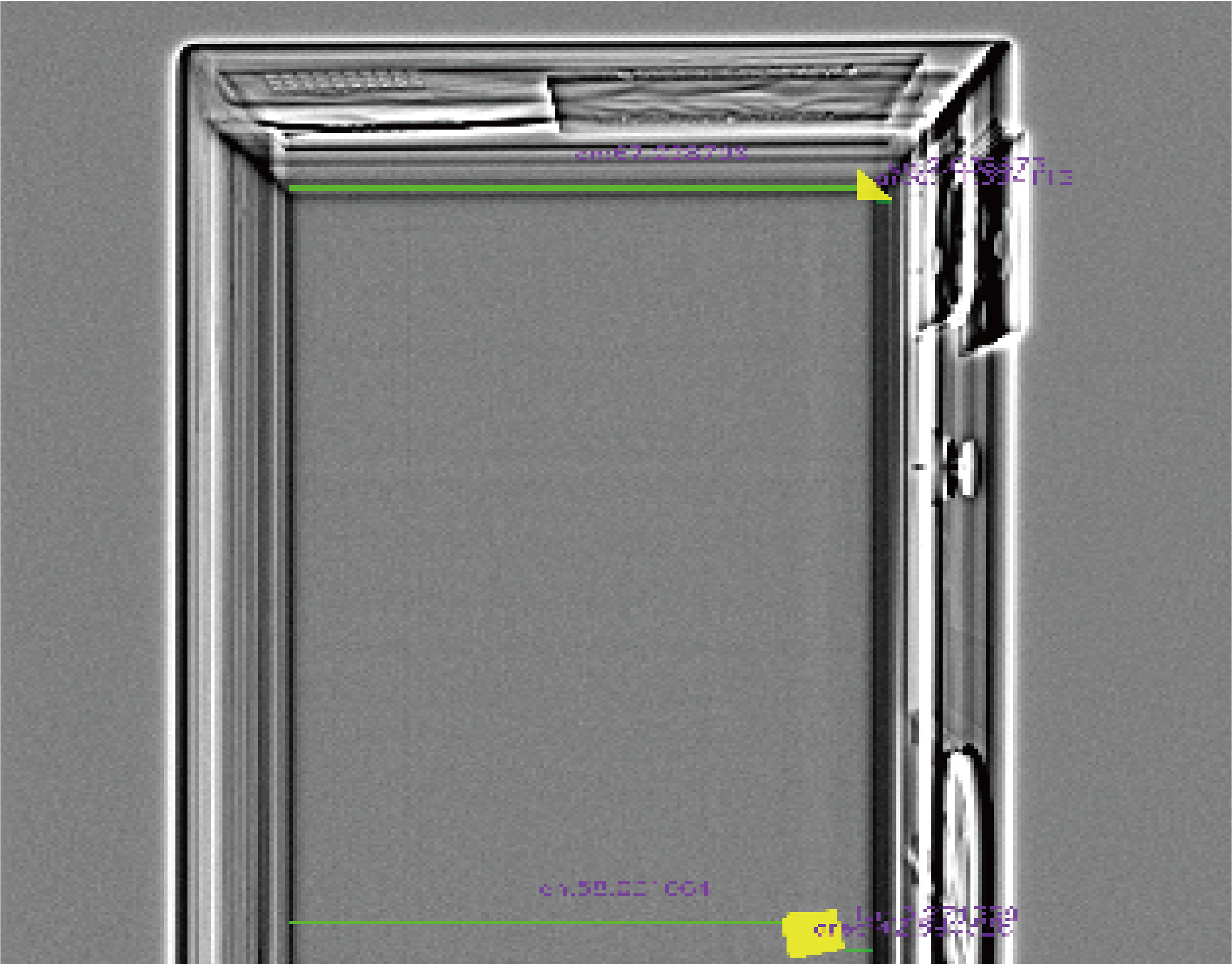

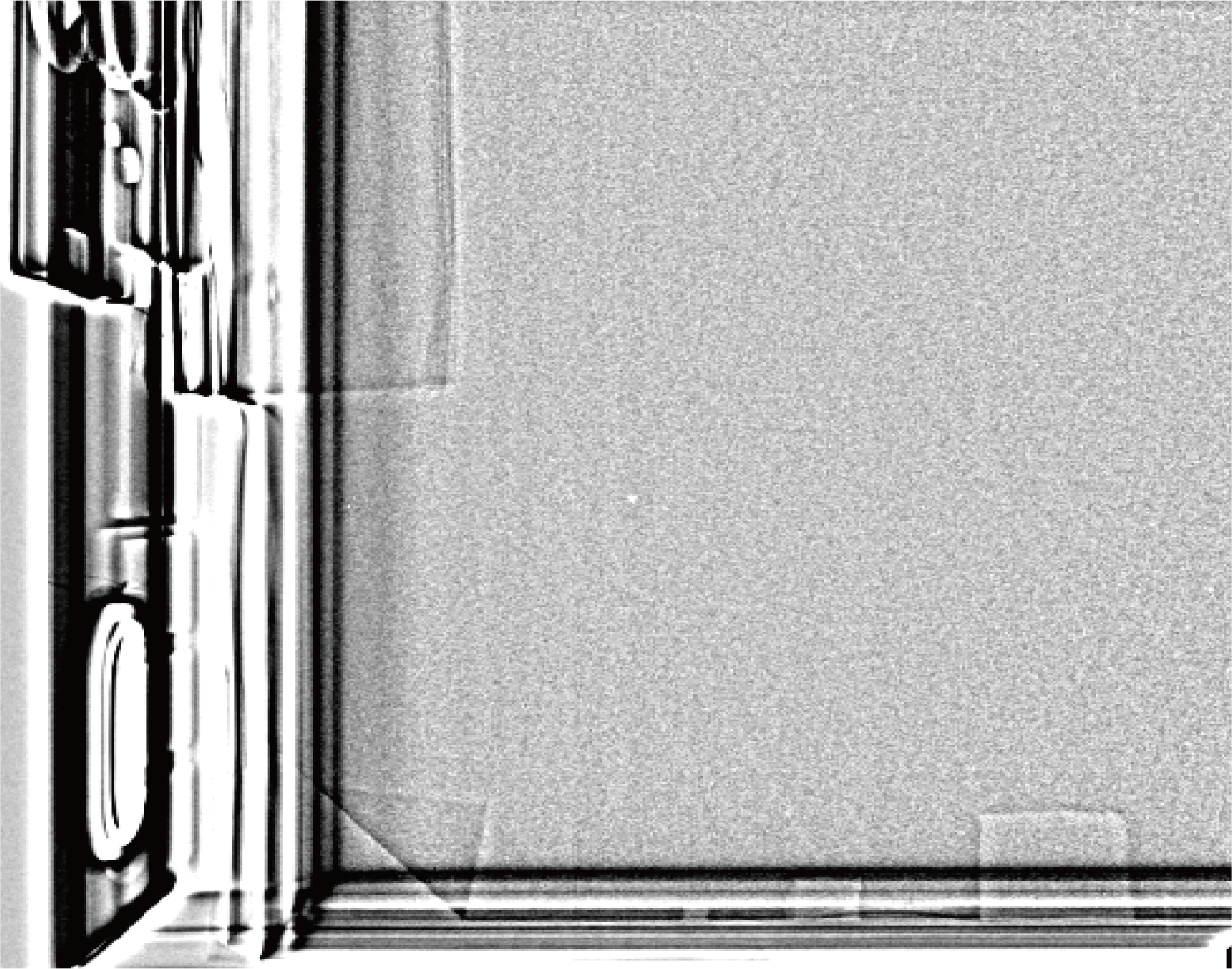

In response to the rapidly growing market demand for large-surface wrinkle and foreign contaminant inspection in recent years, we have delivered multiple production lines with a throughput ranging from 16 to 24 PPM, capable of detecting metallic foreign objects as small as 300μm.

Category	Item	Parameter

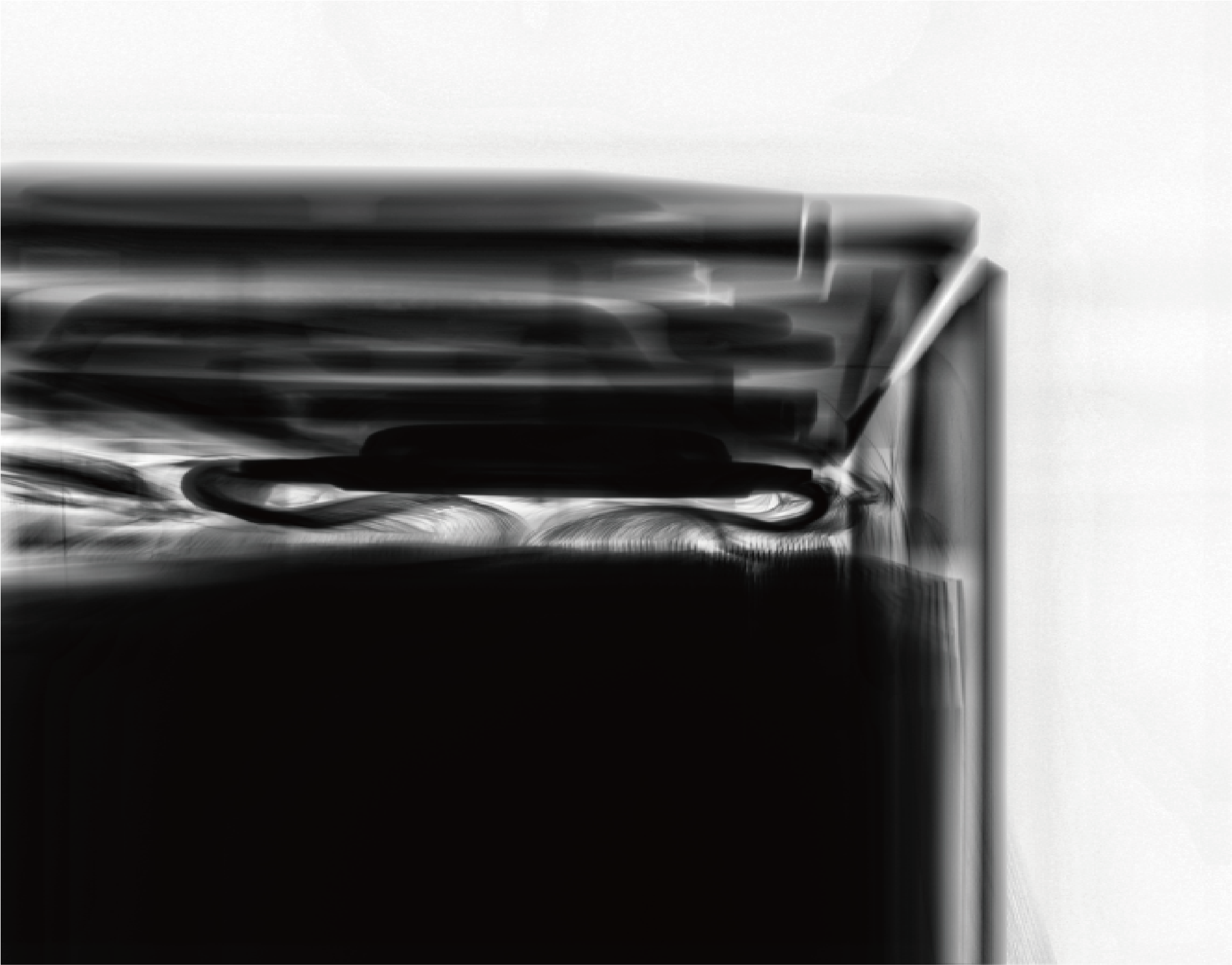

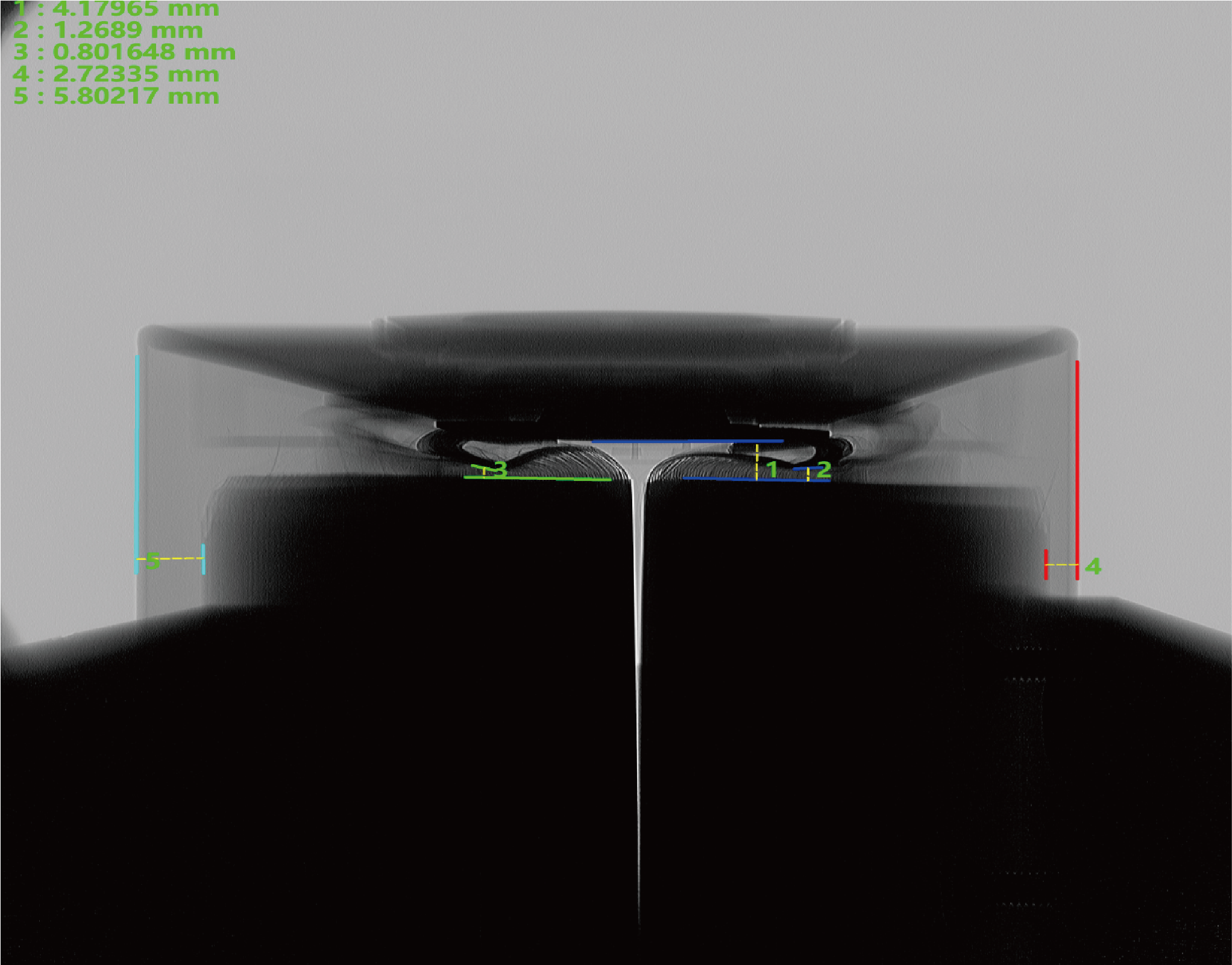

Imaging System	Inspection Content	Electrode Overhang, large-surface wrinkles & foreign contaminants, tab folding, etc.
	Inspection Capacity	≥300 μm (Copper, Iron, Aluminum)
	Inspection Range	Diagonal Overhang	Four-corner Overhang	Large-surface Wrinkle / Foreign Contaminant (Canned Cells)	Large-surface Wrinkle / Foreign Contaminant (Canned Cells)
	Quantity of Imaging System	1 Set	4 Sets	2 Sets	4 Sets
	Throughput	18 PPM	40 PPM	16 PPM	24 PPM
	False Acceptance Rate	≤2%
	False Rejection Rate	0%
X-ray Source	Tube Type	Sealed Tube
	Tube Voltage	130kV/150kV/225kV
	Focal Spot Size	5μm/200μm
Flat Panel Detector	Pixel Size	139μm
	Pixel Matrix	3072×3060
TD Detector	Pixel Size	100μm
	Pixel Matrix	1152×128
Overall Specifications	Overall Dimension	L:8000mm W:3000mm H:2700mm (Excluding three-color warning light, subject to final design)
	Net Weight	Approx. 12000KG
	Rated Power	Approx. 35kW (Subject to final design)
